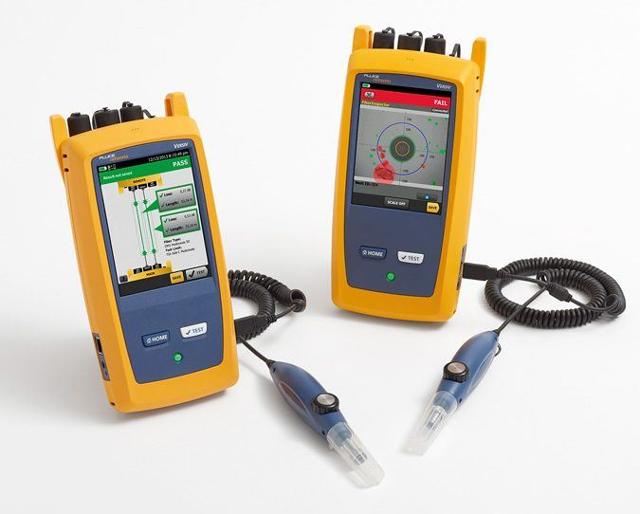

Fluke Networks CertiFiber Pro Optical Loss Test Set
Modul optical loss test set untuk platform Versiv: dalam satu kali tes, loss dan panjang dua serat terukur di dua panjang gelombang, kurang dari tiga detik. Sumber multimode memenuhi Encircled Flux, ada VFL bawaan, dan jangkauan singlemode sampai 130 km. Alat sertifikasi Tier 1 yang biasa dipakai instalatur serat.
| type | OLTS |
|---|---|
| wavelengths | 850/1300 nm MM, 1310/1550 nm SM |
| output power | ≥ −24 dBm MM with EF TRC, ≥ −4 dBm SM |
| power range | 0 to −65 dBm (850 nm), 0 to −70 dBm (other) |
| power accuracy | < ±5 % ±32 pW, linearity < ±0.1 dB |
| test time | Under 3 s, 2 wavelengths (Smart Remote mode) |
| distance range | 12 km MM, 130 km SM |
| connector | LC standard; SC, ST, FC, MDC optional |
| fiber types | MM 50/125 and 62.5/125 µm, singlemode |
| standards | EF to TIA-526-14-B, ISO/IEC 14763-3, IEC 61280-4-1 |
| builtin | VFL 650 nm, optical power meter |
| connectivity | Integrated WiFi 802.11 a/b/g/n, 2.4 and 5 GHz |
| operating temp | −10 to 45 °C |
