Certifier utama kabel tembaga terstruktur di platform Versiv, untuk instalatur menguji, mensertifikasi, dan melaporkan instalasi baru. DSX2-8000 sampai Category 8/Class II, DSX2-5000 sampai Category 6A/Class EA, autotest Cat 6A hanya 8 detik di DSX2-8000 (10 detik di DSX2-5000). Laporan ke cloud lewat LinkWare Live, modul OLTS atau OTDR opsional.
| type | Cable certifier |
|---|
| standards | TIA Cat 3 to 8, ISO/IEC Class C to FA and I/II |
|---|
| max frequency | 2000 MHz (DSX2-8000), 1000 MHz (DSX2-5000) |
|---|
| autotest time | Cat 6A 8 s, Cat 8 16 s (DSX2-8000); Cat 6A 10 s (DSX2-5000) |
|---|

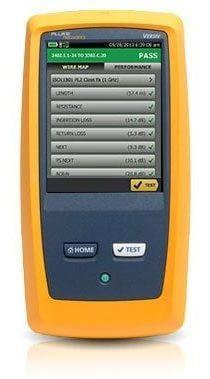

| display | 5.7 inch LCD, projected capacitive touchscreen |
|---|
| battery | Lithium ion 7.2 V, typical 8 hours |
|---|
| storage | ≈ 12,000 Cat 6A or ≈ 5,000 Cat 8 results with plots |
|---|
| connectivity | Integrated WiFi 802.11 a/b/g/n, 2.4 and 5 GHz |
|---|
| weight | 1.28 kg with module and battery |
|---|
| dimensions | 66.7 × 133.3 × 279.4 mm |
|---|
| operating temp | 0 to 45 °C |
|---|
| poe | PoE resistance unbalance tests, IEEE 802.3bt |
|---|
