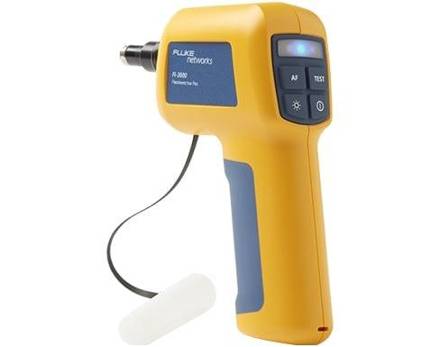

Fluke Networks FI-3000 FiberInspector Ultra

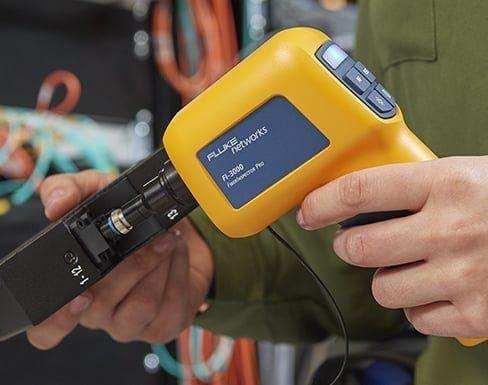

Kamera inspeksi genggam dengan AutoFocus dan AutoCentering, menilai konektor MPO maupun serat tunggal secara otomatis sesuai IEC 61300-3-35. MPO 8 sampai 32 serat dinilai kurang dari dua detik, hasilnya dikirim lewat WiFi ke LinkWare. Cocok untuk tim pusat data yang mengecek end face sebelum kabel dipasang.
| type | Inspection probe |
|---|---|
| inspection | 5 MP CMOS, auto pass/fail IEC 61300-3-35, FOV 610 × 460 µm |
| standards | IEC 61300-3-35 Ed. 2 |
| test time | Under 2 seconds per fiber |
| fibers per test | MPO 8 to 32 fibers (1×8, 1×12, 1×16, 2×12, 2×16) |
| connector | Single fiber and MPO, UPC or APC |
| builtin | White LED port illumination |
| battery | Lithium ion, 10.8 hour life |
| connectivity | USB, WiFi, Versiv, mobile app |
| weight | 326 g |
| dimensions | 168 × 137 × 54 mm |
| operating temp | −10 to 45 °C |
