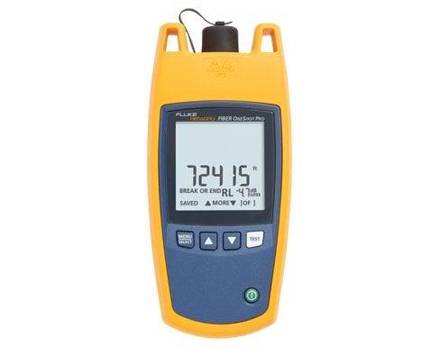

Fluke Networks Fiber OneShot Pro
Pencari jarak dan gangguan serat singlemode yang posisinya di antara VFL sederhana dan OTDR penuh: putus dan event loss tinggi dapat ditemukan sampai jarak 23 km. Tes di 1550 nm biasanya selesai dalam lima detik, dan satu set baterai tahan lebih dari 1.500 tes. Cocok kalau butuh troubleshooting cepat tanpa repot mengoperasikan OTDR.
| type | Fiber distance and fault locator |
|---|---|
| wavelengths | 1550 nm ±20 nm |
| distance range | More than 23,000 m |
| test time | 5 seconds typical |
| builtin | Live fiber detection 1250 to 1625 nm |
| fiber types | Singlemode 9/125 µm |

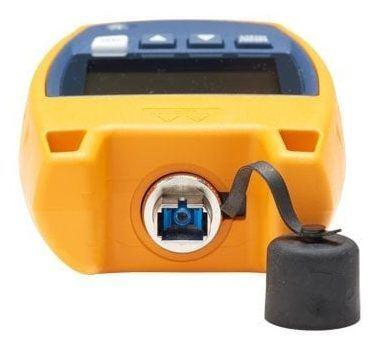

| connector | SC UPC removable adapter; LC and ST optional |
| display | Backlit black and white segment display |
| battery | 2 AA alkaline, over 1,500 tests |
| weight | 0.35 kg |
| dimensions | 175 × 78 × 38 mm |
| operating temp | 0 to 50 °C |
| standards | Class 1 laser, EN 60825-2 |
