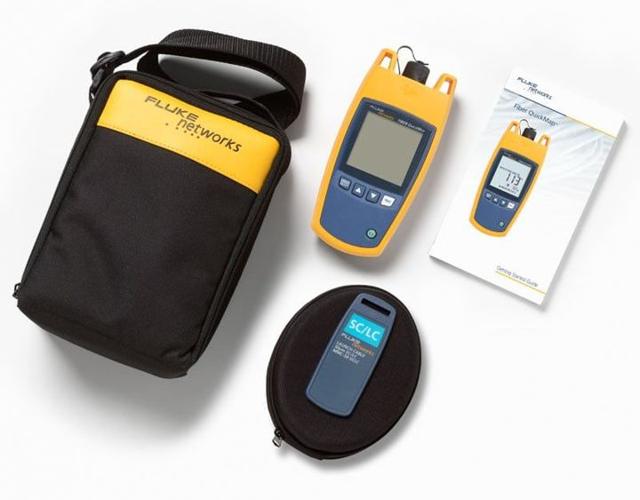

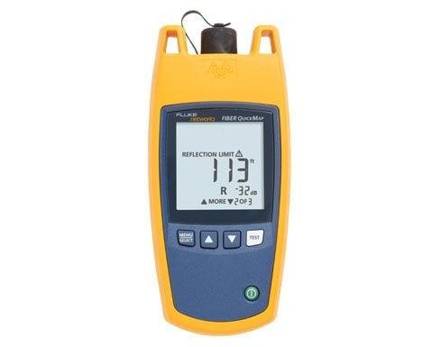

Fluke Networks Fiber QuickMap

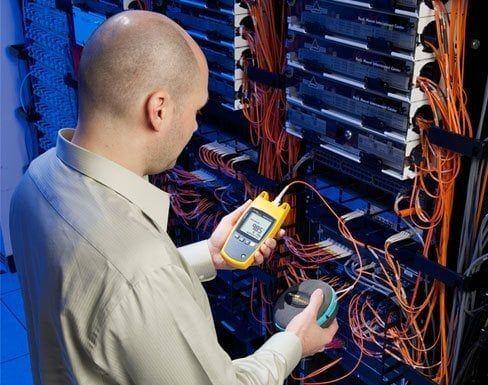

Pencari jarak dan gangguan serat multimode ukuran saku, menunjukkan lokasi putus, sambungan buruk, dan konektor kotor dalam waktu kurang dari enam detik. Bekerja di 850 nm dengan jangkauan sampai 1.500 m, satu set baterai cukup untuk 1.500 tes. Alat pertama yang dipegang saat link multimode data center atau kampus bermasalah.
| type | Fiber distance and fault locator |
|---|---|
| wavelengths | 850 nm ±10 nm |
| distance range | Up to 1500 m |
| dynamic range | 11 dB |
| event dz | 2 m after bulkhead, 3 m after an event |
| test time | 6 seconds typical |
| fiber types | MM 50/125 or 62.5/125 µm |

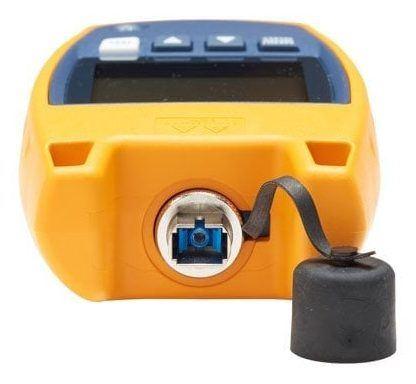

| connector | SC UPC removable adapter; LC, FC, ST optional |
| builtin | Live fiber detection 600 to 1050 nm |
| display | Backlit black and white segment display |
| battery | 2 AA alkaline, over 1,500 tests |
| weight | 0.35 kg with batteries |
| dimensions | 175 × 78 × 38 mm |
| operating temp | 0 to 50 °C |
| standards | Class 1 laser, EN 60825-2 |
