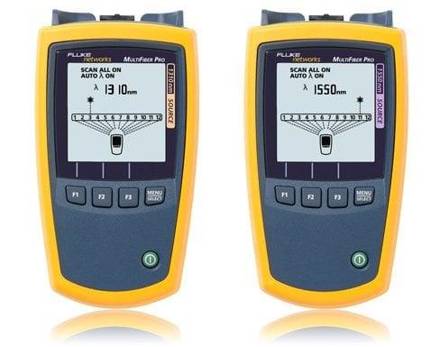

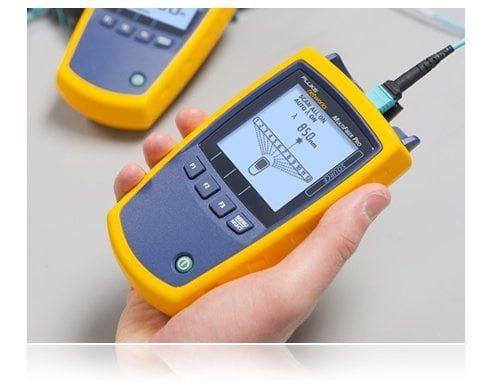

Fluke Networks MultiFiber Pro Optical Power Meter
Power meter dan light source dengan antarmuka MPO native, jadi loss dan polaritas trunk MPO 12 serat bisa diuji tanpa kabel fan out. Tombol Scan All memeriksa semua 8, 10, atau 12 serat dalam enam detik, dan memorinya menampung 3.000 hasil. Tim instalasi pusat data yang menangani kabel pra terminasi biasanya memakainya.
| type | Optical power meter |
|---|---|
| wavelengths | Meter 850/1300/1310/1550 nm; sources 850/1310/1550 nm |
| output power | ≥ −24 dBm (850 nm), ≥ −1 dBm (1310 nm) |
| power range | 0 to −50 dBm (850 nm), −5 to −50 dBm (others) |
| power accuracy | ±0.35 dB, linearity ±0.1 dB |
| test time | 6 seconds for 12 fiber scan |
| fibers per test | 12 |

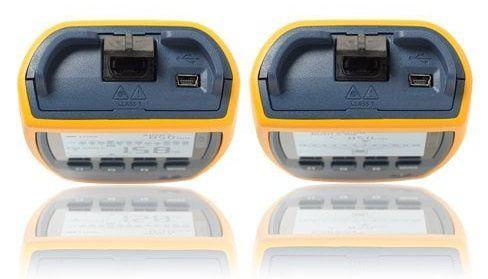

| connector | MPO 12 fiber, unpinned |
| fiber types | MM 62.5 and 50 µm, singlemode 9 µm |
| storage | 3,000 records (250 12 fiber cables) |
| battery | 2 AA alkaline, over 30 hours |
| connectivity | USB 2.0 |
| weight | 309 g |
| dimensions | 147 × 80 × 40 mm |
| operating temp | −10 to 50 °C |
| standards | TIA 455-526-14B, ISO/IEC 14763-3, IEC 61280-4-1 |
