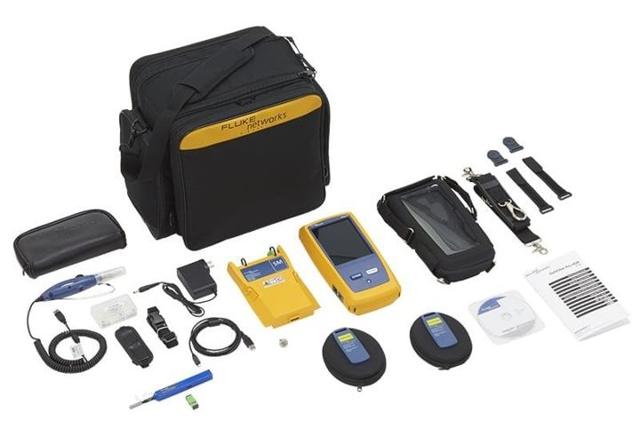

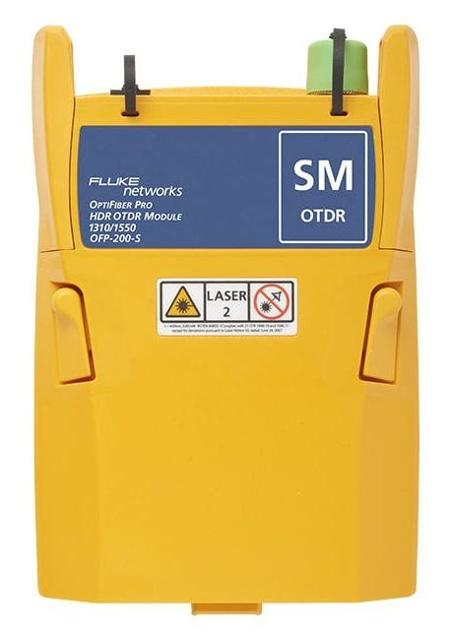

Fluke Networks OptiFiber Pro OTDR

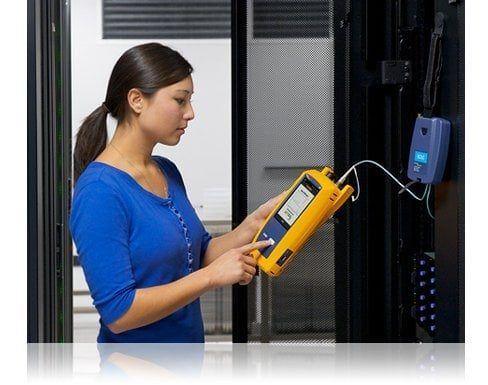

OTDR layar sentuh dengan gestur ala ponsel untuk mencari dan mengkarakterisasi gangguan, sambungan, dan tekukan di link serat. Event dead zone 0,5 m, dynamic range sampai 42 dB pada versi HDR, dan SmartLoop menguji dua serat sekaligus. Kontraktor serat memakainya untuk sertifikasi Tier 2 dan troubleshooting.
| type | OTDR |
|---|---|
| wavelengths | 850/1300 nm MM, 1310/1550 nm SM; 1490/1625 nm HDR options |
| dynamic range | 28/30 dB MM, 32/30 dB SM, up to 42 dB HDR |
| event dz | 0.5 m (850 nm), 0.6 m (1310 nm), 0.7 m HDR |
| atten dz | 2.5 m (850 nm), 3.6 m (1310 nm), 4 m HDR |
| distance range | 40 km MM, 130 km SM |
| sampling points | Up to 64,000; up to 129,000 HDR |
| sampling resolution | 3 cm to 400 cm; 3 cm to 2 m HDR |
| test time | Quick Test 2 s MM, 5 s SM |
| fibers per test | 2 (SmartLoop) |
| builtin | VFL 650 nm, FiberInspector Pro video inspection |
| connector | Removable SC adapter; UPC (OFP2-100), APC (OFP2-200) |
| fiber types | MM 50/125 and 62.5/125 µm, singlemode |
| battery | 8 hours Auto OTDR operation |
| connectivity | Integrated WiFi 802.11 a/b/g/n, 2.4 and 5 GHz |
| weight | 1.28 kg with module and battery |
| dimensions | 66.7 × 133.3 × 279.4 mm |
| operating temp | −18 to 45 °C |
