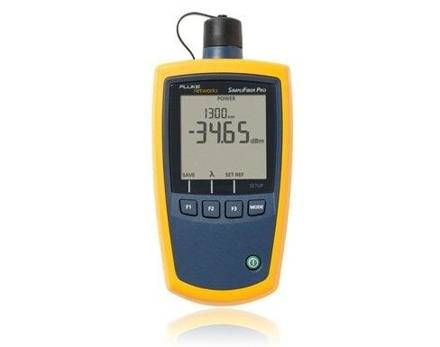

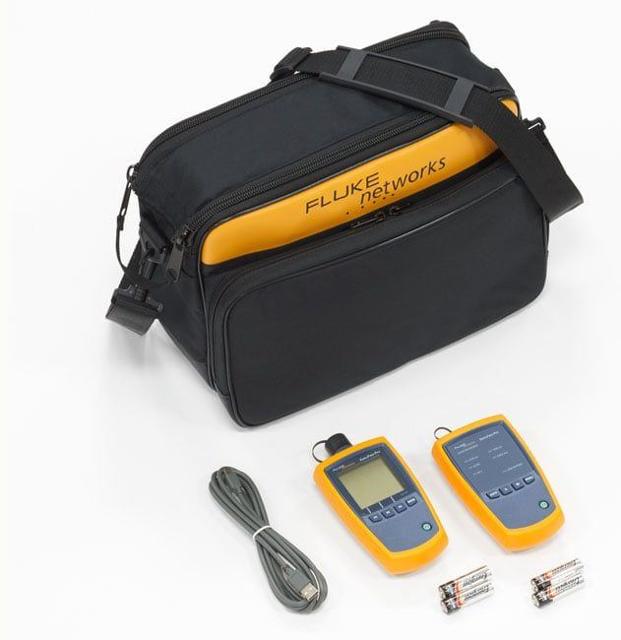

Kit power meter dan light source yang mudah dipakai untuk mengukur loss serat di jaringan gedung dan kampus. Power meternya membaca enam panjang gelombang dengan rentang 70 dB sampai +10 dBm, bisa menguji dua panjang gelombang sekaligus, dan menyimpan 1.000 hasil. CheckActive memberi tahu jika serat sedang aktif.
| type | Optical power meter |
|---|
| wavelengths | 850/1300/1310/1490/1550/1625 nm |
|---|
| power range | +10 to −52 dBm (850 nm), +10 to −60 dBm (others) |
|---|
| power accuracy | ±0.25 dB; linearity ±0.1 dB (±0.2 dB at 850 nm) |
|---|
| output power | −20 dBm min MM source 850/1300 nm |
|---|
| storage | 1,000 records, multiple wavelengths per record |
|---|
| battery | 2 AA alkaline, over 50 hours (meter) |
|---|
| connectivity | USB 2.0 |
|---|
| connector | SC adapter default; LC, ST optional |
|---|
| fiber types | MM 50 and 62.5 µm, singlemode 9/125 µm |
|---|
| builtin | CheckActive live fiber detection, audible tone |
|---|
| weight | 325 g (meter) |
|---|
| dimensions | 165 × 80 × 39 mm |
|---|
| operating temp | −10 to 50 °C |
|---|
