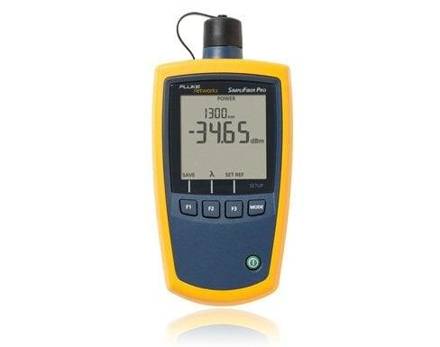

Fluke Networks SimpliFiber Pro Optical Power Meter

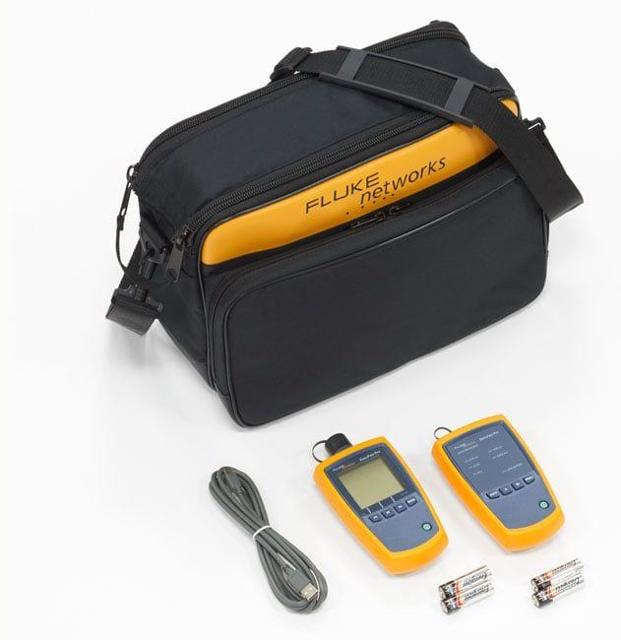

Kit power meter dan light source yang mudah dipakai untuk mengukur loss serat di jaringan gedung dan kampus. Power meternya membaca enam panjang gelombang dengan rentang 70 dB sampai +10 dBm, bisa menguji dua panjang gelombang sekaligus, dan menyimpan 1.000 hasil. CheckActive memberi tahu jika serat sedang aktif.
| type | Optical power meter |
|---|---|
| wavelengths | 850/1300/1310/1490/1550/1625 nm |
| power range | +10 to −52 dBm (850 nm), +10 to −60 dBm (others) |
| power accuracy | ±0.25 dB; linearity ±0.1 dB (±0.2 dB at 850 nm) |
| output power | −20 dBm min MM source 850/1300 nm |
| storage | 1,000 records, multiple wavelengths per record |
| battery | 2 AA alkaline, over 50 hours (meter) |
| connectivity | USB 2.0 |
| connector | SC adapter default; LC, ST optional |
| fiber types | MM 50 and 62.5 µm, singlemode 9/125 µm |
| builtin | CheckActive live fiber detection, audible tone |
| weight | 325 g (meter) |
| dimensions | 165 × 80 × 39 mm |
| operating temp | −10 to 50 °C |
