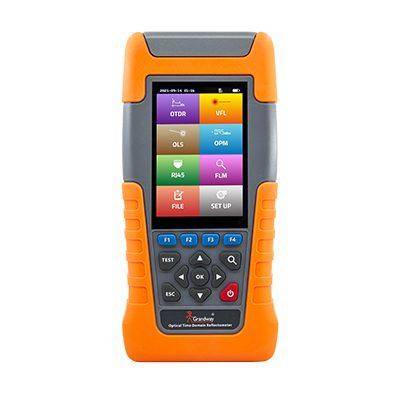

Grandway FHO1000 Handheld OTDR
OTDR saku seberat 570 g untuk teknisi yang lebih banyak bekerja di lapangan: dynamic range hingga 28 dB tergantung model, dead zone event 1 m, dan masih sanggup menguji serat lebih dari 100 km. Layar warna 3,5 inci, baterai 5000 mAh, plus Bluetooth, USB Type C, dan dua port RJ45. Fungsi VFL, light source, dan power meter juga sudah termasuk.
| type | OTDR |
|---|---|
| wavelengths | 1310/1550 nm; 1625, 1650 or 1610 nm by model |
| dynamic range | 20 to 28 dB by model |
| event dz | ≤ 1 m |
| atten dz | ≤ 4 m |
| distance range | 500 m to 120 km |
| sampling points | 64,000 |
| sampling resolution | 0.05 m |
| display | 3.5 inch color LCD |
| battery | 5000 mAh lithium |
| storage | 16 GB micro SD card |

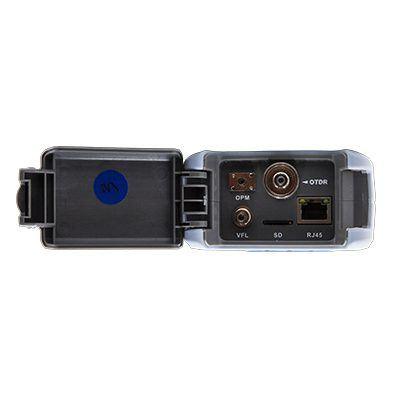

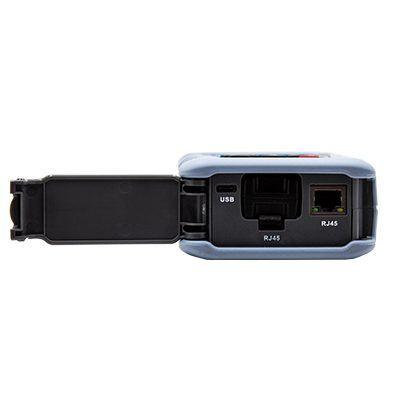

| connectivity | USB Type C, Bluetooth, 2 × RJ45 |
| weight | 570 g |
| dimensions | 192.9 × 93.8 × 47 mm |
| operating temp | −10 to 50 °C |
| connector | FC/UPC or SC/UPC |
| fiber types | Singlemode |
| builtin | VFL 10 mW, OPM, OLS, RJ45 cable test, link map |
| power range | −60 to +10 dBm |
| output power | over −12 dBm |
