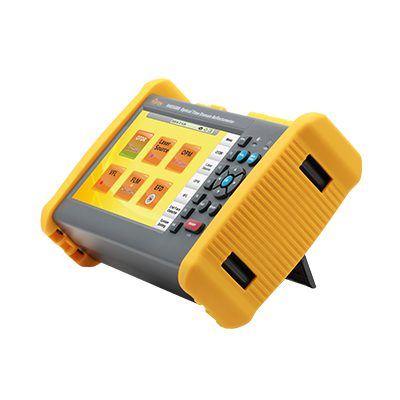

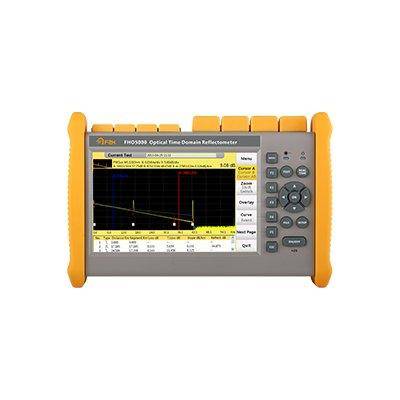

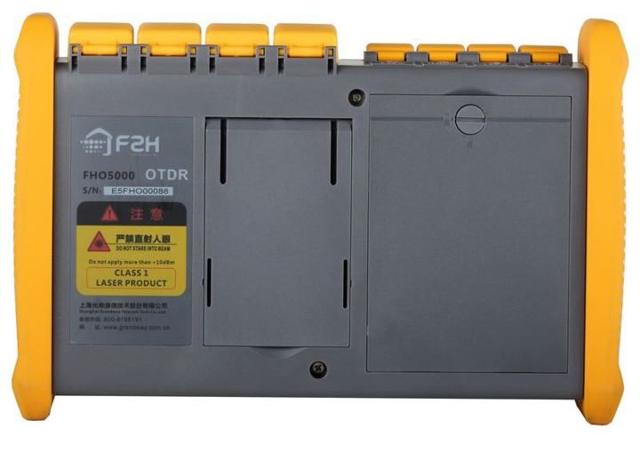

Grandway FHO5000 Series OTDR
OTDR genggam untuk FTTx, metro, sampai backbone, tersedia dalam banyak kombinasi panjang gelombang dan dynamic range 24 sampai 45 dB. Dead zone event 0,8 sampai 1,2 m, jangkauan sampai 200 km, memori 80.000 trace, layar sentuh 7 inci. VFL, light source, dan power meter sudah ada di dalam, jadi bawaan lebih ringkas.
| type | OTDR |
|---|---|
| wavelengths | 1310/1550 nm; 1490, 1625, 1650 or 850/1300 nm by model |
| dynamic range | 24 to 45 dB |
| event dz | 0.8 to 1.2 m |
| atten dz | 3.6 to 8 m |
| distance range | up to 200 km |
| display | 7 inch TFT LCD touchscreen |
| battery | 6 hours |
| storage | 80,000 traces |

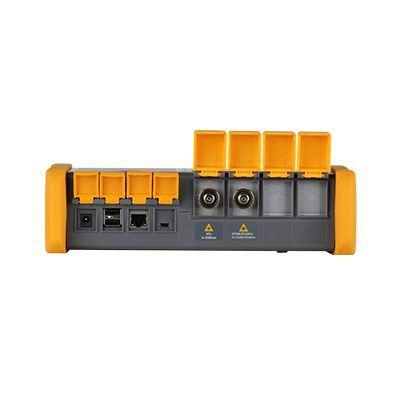

| connectivity | 3 × USB, Ethernet |
| weight | 1.5 kg with battery |
| dimensions | 253 × 168 × 73.6 mm |
| operating temp | −10 to 50 °C |
| connector | FC/UPC (SC/LC adapters available) |
| builtin | VFL, OLS, OPM |
