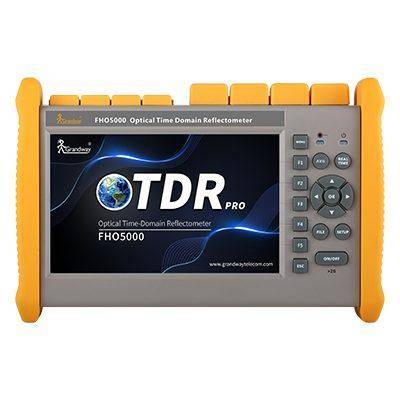

Kelas paling atas di lini OTDR Grandway: dynamic range 26 sampai 50 dB, dead zone event 0,8 m, jangkauan 500 m sampai 265 km, layar sentuh 7 inci. Untuk jaringan PON ada uji online di 1625/1650 nm dan dukungan splitter tidak seimbang sampai 1x128. Laporan bisa dikirim dari lapangan lewat Bluetooth ke aplikasi ponsel.
| type | OTDR |
|---|
| wavelengths | 1310/1550 nm; 1490, 1625, 1650 or 850/1300 nm by model |
|---|
| dynamic range | 26/24 to 50/48 dB (SM), 19/21 dB (MM) |
|---|
| event dz | 0.8 to 1 m |
|---|
| atten dz | 3 to 4 m |
|---|
| distance range | 500 m to 265 km |
|---|
| sampling points | 256,000 |
|---|
| sampling resolution | 5 cm |
|---|
| display | 7 inch TFT LCD touchscreen |
|---|
| battery | 7.4 V 5.2 Ah lithium |
|---|
| storage | 16 GB TF card |
|---|
| connectivity | RJ45, 3 × USB, Bluetooth with mobile app |
|---|
| weight | 1.5 kg with battery |
|---|
| dimensions | 253 × 168 × 73.5 mm |
|---|
| operating temp | −10 to 50 °C |
|---|
| connector | 2.5 mm universal (SC/LC adapters optional) |
|---|
| fiber types | Singlemode and multimode |
|---|
| builtin | VFL 10 mW, OPM, OLS, live fiber detect, PON test |
|---|
| power range | −60 to +23 dBm (optional OPM) |
|---|
| power accuracy | ±0.35 dB |
|---|
| output power | ≥ −10 dBm SM, ≥ −15 dBm MM |
|---|
