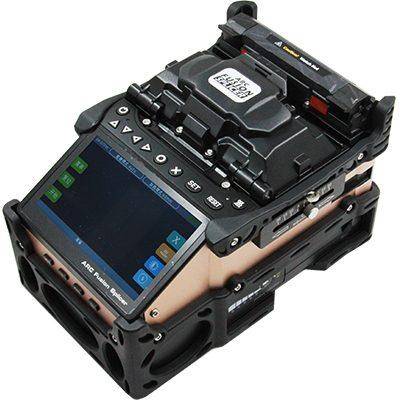

Grandway GS-602F Fusion Splicer
Splicer core alignment enam motor untuk penyambungan singlemode dengan loss 0,02 dB: penyambungan sekitar 5 detik, pemanasan 11 detik. Baterai 7200 mAh tahan sekitar 320 siklus, layar sentuh 4,3 inci dengan zoom 380x, dan VFL serta power meter sudah tertanam. Memorinya menyimpan 20.000 catatan sambungan dan 200 gambar.
| type | Fusion splicer |
|---|---|
| alignment | Core alignment, 6 motors |
| fiber types | SM G.652, MM G.651, DS G.653, NZDS G.655, BIF G.657 |
| splice loss | 0.02 dB SM, 0.01 dB MM, 0.04 dB DS/NZDS/BIF |
| splice time | 5 s |
| heat time | 11 s |
| electrodes life | over 5,000 arcs |
| splices per charge | 320 cycles splicing and heating |
| battery | 7200 mAh lithium |
| display | 4.3 inch touchscreen, 380× magnification |
| storage | 20,000 records, 200 images |
| connectivity | USB 2.0, mini USB |
| weight | 2.0 kg with battery |
| dimensions | 135 × 206 × 130 mm |
| operating temp | −20 to 50 °C |
