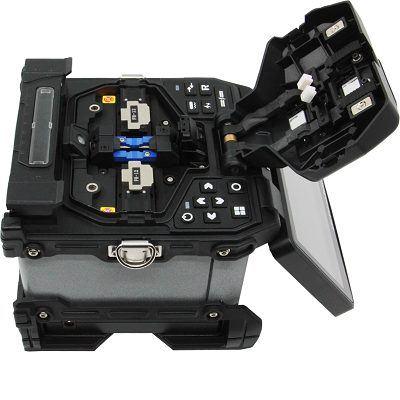

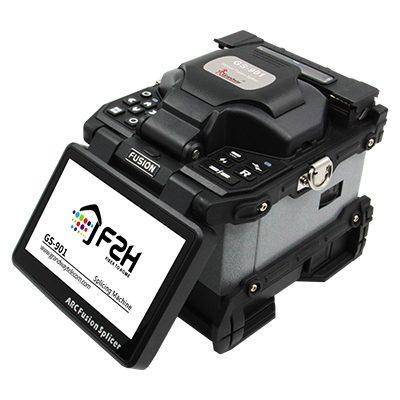

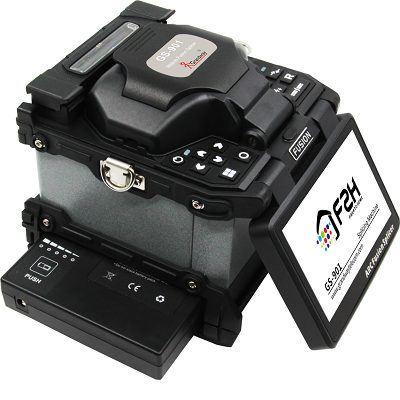

Mass fusion splicer untuk serat ribbon, menyambung sampai 12 core sekaligus dengan penjajaran clad to clad dalam sekitar 20 detik. Layar sentuh 5 inci 800x480, baterai 5200 mAh untuk sekitar 150 siklus, dan memori 10.000 catatan. Pilih ini kalau kabel backbone atau data center Anda memakai ribbon.
| type | Fusion splicer |
|---|
| alignment | Cladding alignment, ribbon |
|---|
| fiber count | Single fiber to 12 fiber ribbon |
|---|
| fiber types | SM G.652, MM G.651, DS G.653, NZDS G.655 |
|---|
| splice loss | 0.05 dB SM, 0.02 dB MM, 0.08 dB DS/NZDS |
|---|
| splice time | 20 s |
|---|
| heat time | 26 s (1 to 2 fibers), 40 s (4 to 12 fibers) |
|---|
| electrodes life | over 3,000 arcs |
|---|
| splices per charge | 150 cycles splicing and heating |
|---|
| battery | 5200 mAh lithium |
|---|
| display | 5 inch 800 × 480 touchscreen, 25× magnification |
|---|
| storage | 10,000 records, 200 images |
|---|
| connectivity | USB 2.0 |
|---|
| weight | 2.3 kg with battery |
|---|
| dimensions | 155 × 144 × 155 mm |
|---|
| operating temp | −10 to 50 °C |
|---|
