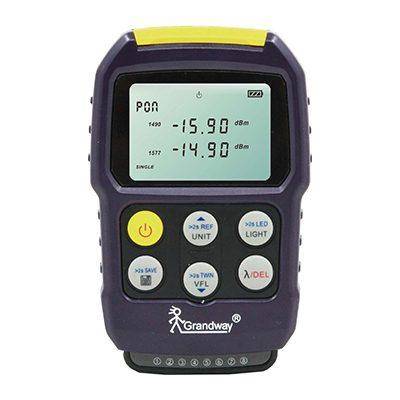

Grandway MT577 Multifunctional 10G Power Meter
Satu alat genggam 108 g yang merangkap power meter 10G PON, VFL 10 mW 650 nm, dan tester kabel RJ45, plus senter kecil. Detektor InGaAs dengan rentang ukur 80 dB sampai +10 dBm dan pilihan panjang gelombang 10G PON. Dipasangkan dengan laser source FHS2, panjang gelombang dikenali otomatis.
| type | Optical power meter |
|---|---|
| wavelengths | 1270/1300/1310/1490/1550/1577/1625/1650 nm |
| power range | −70 to +10 dBm |
| power accuracy | ±0.5 dB |
| connector | 2.5 mm universal FC/SC/ST |
| storage | 999 groups |
| connectivity | USB Type C |
| battery | 450 mAh lithium |
| builtin | 10 mW 650 nm VFL, RJ45 cable test, 10G PON selective |
| weight | 108 g |
| dimensions | 104 × 67 × 28 mm |
| operating temp | −10 to 50 °C |
