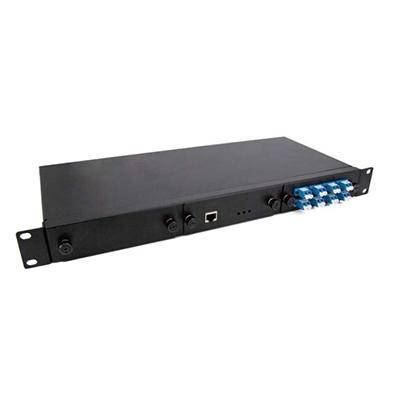

Grandway RTU-4000 Integrated Fiber Monitoring Equipment
Perangkat pemantauan serat dengan OTDR dan switch optik dalam satu rak 1U, cocok untuk ruang server, sentral, dan pusat data. Sampai 16 serat dites bergantian secara otomatis lewat kanal LC/UPC atau LC/APC, dynamic range 35 sampai 45 dB, 256.000 titik sampel. Bisa disambungkan ke NMS lewat antarmuka terbuka.
| type | RFTS unit |
|---|---|
| channels | 1 to 16 (8 standard) |
| wavelengths | 1625 nm (1550 or 1650 nm optional) |
| dynamic range | 35 to 45 dB |
| event dz | 1 m |
| atten dz | 4 m |
| distance range | 500 m to 265 km |
| sampling points | 256,000 |
| sampling resolution | 0.05 to 4 m |
| connector | LC/UPC or LC/APC |
| install | 19 inch rack, 1U |
| dimensions | 438 × 300 × 45 mm |
| connectivity | RJ45 Ethernet, RS-232 |
| operating temp | −10 to 50 °C |
| builtin | OTDR, optical switch, WDM, live fiber monitoring |
