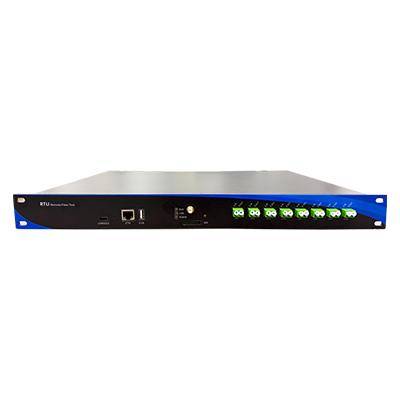

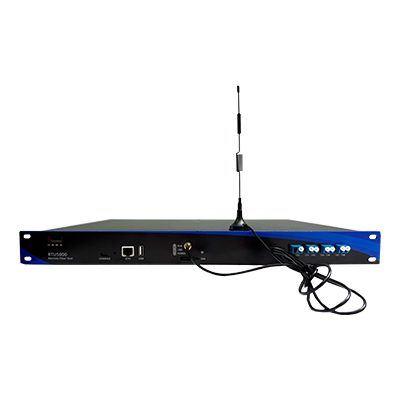

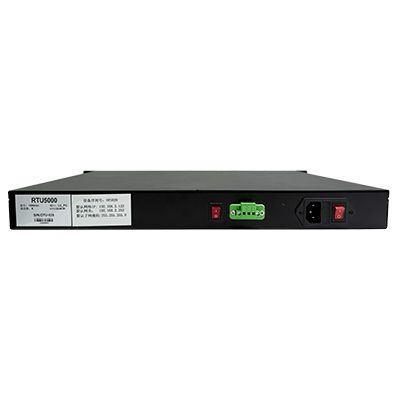

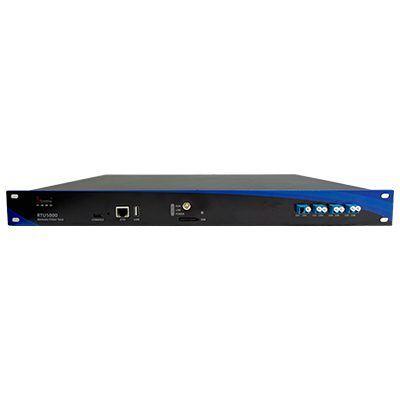

Grandway RTU-5000 OTDR Monitoring Unit (RFTS)
Unit OTDR rak 1U untuk sistem pemantauan serat jarak jauh (RFTS) di backbone, metro, dan antargedung. Kabel diukur terjadwal atau saat diminta, hasilnya dibandingkan dengan trace referensi, dan alarm lokasi gangguan dikirim ke pusat kendali. Kanal 1 sampai 16, bisa diperluas sampai 128, dynamic range 35 sampai 45 dB.
| type | RFTS unit |
|---|---|
| channels | 1 to 16 (customizable) |
| wavelengths | 1310/1550 nm dark fiber; 1490/1625/1650 nm online |
| dynamic range | 35 to 45 dB |
| event dz | 0.8 m |
| atten dz | 3.5 m |
| distance range | 500 m to 265 km |
| sampling points | 256,000 |
| sampling resolution | 0.05 to 4 m |
| connector | LC/UPC or LC/APC |
| install | 19 inch rack, 1U |
| dimensions | 438 × 300 × 45 mm |
| connectivity | Ethernet 10/100 Mbps, LTE Cat.1 |
| operating temp | −10 to 50 °C |
| builtin | OTDR, optical switch, WDM, GIS fault map, alarms |
