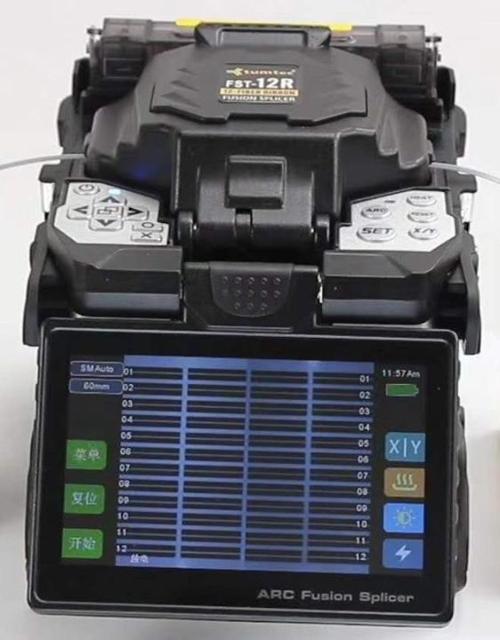

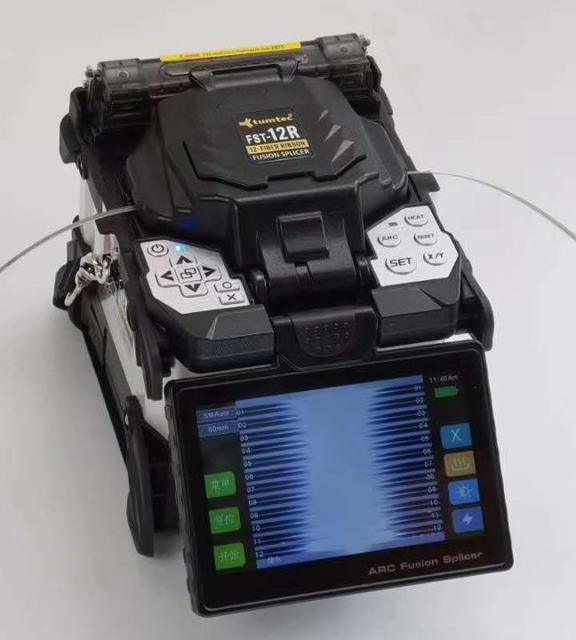

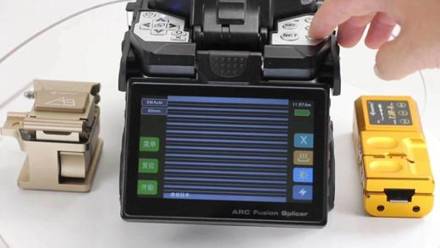

Ribbon splicer Tumtec untuk menyambung ribbon 1 sampai 12 serat sekaligus, ditujukan untuk backbone dan jaringan trunk. Satu sambungan ribbon sekitar 15 detik, baterai 6800 mAh untuk 200 siklus, layar 5 inci 800 × 480, dan bobot 2,18 kg termasuk bumper.
| type | Fusion splicer |
|---|
| alignment | Multi core cladding alignment |
|---|
| fiber count | 1/2/4/6/8/10/12 fiber ribbon |
|---|
| fiber types | SM G.652/G.657, MM G.651, DS G.653, NZDS G.655 |
|---|
| splice loss | 0.05 dB SM, 0.02 dB MM, 0.08 dB DS/NZDS |
|---|
| splice time | 15 s ribbon, 9 s single fiber |
|---|
| heat time | Typical 20 s |
|---|
| electrodes life | 2,000 arcs |
|---|
| splices per charge | Typical 200 cycles (splice + heat) |
|---|
| battery | 6800 mAh |
|---|
| display | 5 inch color high resolution display, 250x |
|---|
| weight | 2.18 kg with bumper, 1.82 kg without |
|---|
| dimensions | 130 × 170 × 170 mm excluding bumper |
|---|
| storage | Last 10,000 results and 200 images |
|---|
| connectivity | Mini USB 2.0 |
|---|
| operating temp | −10 to 50 °C |
|---|
