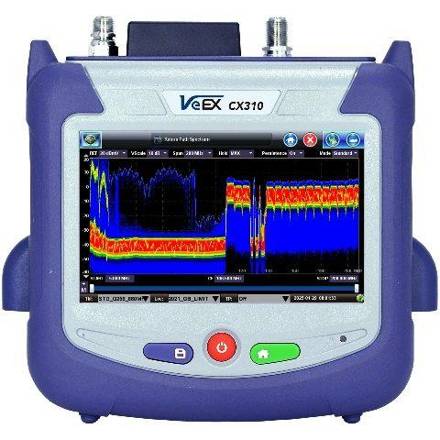

VeEX CX310 DOCSIS 3.1 Test Set
Meter instalasi DOCSIS 3.1 untuk teknisi jaringan CATV, dengan cable modem terpasang di dalamnya dan bobot sekitar 1 kg. Mampu melakukan analisis OFDM, mengukur throughput dengan VeTest, memindai seluruh band dengan VeCheck, dan mencari ingress. Pilihan hemat biaya untuk tim instalasi.
| type | DOCSIS meter (DOCSIS 3.1 installation test set) |
|---|---|
| cable standards | DOCSIS 3.1, DOCSIS 3.0 (32×8 channel bonding) |
| frequency range | 5 MHz to 1218 MHz |
| test range | Level −40 to +40 dBmV, ±2 dB; MER 21 to 43 dB |
| rates | Downstream up to 4 Gbps, upstream up to 1 Gbps |
| interfaces | 75 Ω RF port, RJ45 10/100/1000 Ethernet test port |
| test functions | OFDM analysis, VeCheck scan, VeTest, RFC 6349 TCP, ingress |
| tdr range | 1.5 km (5,000 ft), optional |
| bands | WiFi 802.11 a/b/g/n/ac, 2.4 and 5 GHz |
| display | 5 inch WVGA 800 × 480 TFT color touchscreen |
| battery | 75 Wh Li ion, over 8 hours |
| connectivity | Micro USB OTG, Bluetooth, WiFi, optional Ethernet adapter |
| weight | 1.2 kg |
| dimensions | 150 × 150 × 80 mm |
| operating temp | −10 to 45 °C |
