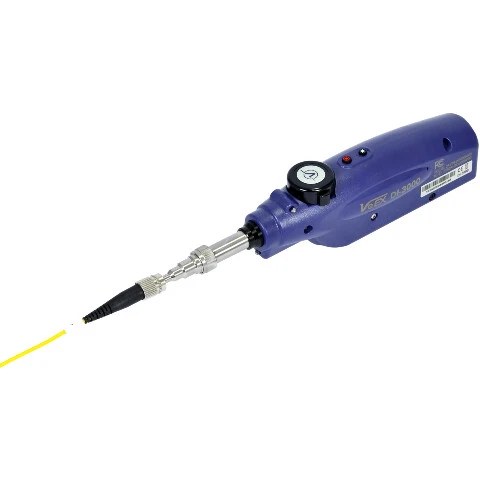

Mikroskop inspeksi end face dengan auto focus satu sentuhan dan WiFi ke Android, iOS, atau test set VeEX, jadi konektor di rak pusat data bisa dicek tanpa kabel. Analisis pass/fail otomatis sesuai IEC 61300-3-35 untuk konektor jantan maupun bulkhead, MPO/MTP lewat adaptor opsional. 178 g, baterai 4 sampai 5 jam.
| type | Inspection probe (auto focus, WiFi and USB) |
|---|
| inspection | 1/4 inch CMOS camera, 640 × 480 µm field of view, 0.5 µm detectable, auto and manual focus |
|---|
| standards | IEC 61300-3-35 automated pass/fail analysis |
|---|
| connector | Male and bulkhead PC, UPC and APC tips; MPO/MTP with optional adapter |
|---|
| connectivity | WiFi to Android, iOS, Windows or VeEX test sets; micro USB |
|---|
| battery | Rechargeable Li ion, 4 to 5 hours with auto focus, 7 hours standby, under 4 hours recharge |
|---|
| weight | 178 g including battery |
|---|
| dimensions | 205 × 37 × 48 mm |
|---|
| operating temp | 0 to 50 °C |
|---|
| builtin | Blue LED end face illumination and flashlight |
|---|
