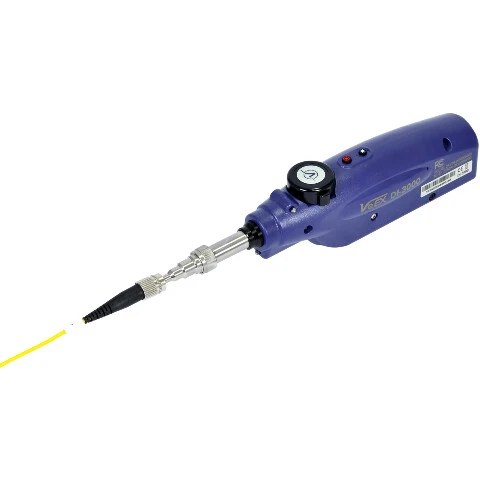

VeEX DI-3000 Auto Focus Wireless Fiber Inspection Microscope
Mikroskop inspeksi end face dengan auto focus satu sentuhan dan WiFi ke Android, iOS, atau test set VeEX, jadi konektor di rak pusat data bisa dicek tanpa kabel. Analisis pass/fail otomatis sesuai IEC 61300-3-35 untuk konektor jantan maupun bulkhead, MPO/MTP lewat adaptor opsional. 178 g, baterai 4 sampai 5 jam.
| type | Inspection probe (auto focus, WiFi and USB) |
|---|---|
| inspection | 1/4 inch CMOS camera, 640 × 480 µm field of view, 0.5 µm detectable, auto and manual focus |
| standards | IEC 61300-3-35 automated pass/fail analysis |
| connector | Male and bulkhead PC, UPC and APC tips; MPO/MTP with optional adapter |
| connectivity | WiFi to Android, iOS, Windows or VeEX test sets; micro USB |
| battery | Rechargeable Li ion, 4 to 5 hours with auto focus, 7 hours standby, under 4 hours recharge |
| weight | 178 g including battery |
| dimensions | 205 × 37 × 48 mm |
| operating temp | 0 to 50 °C |
| builtin | Blue LED end face illumination and flashlight |
