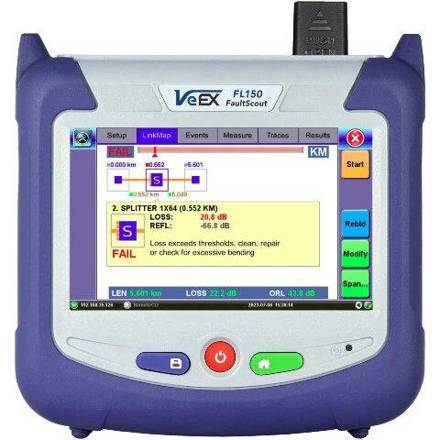

Fiber multimeter untuk teknisi aktivasi layanan FTTx: cukup sambungkan sekali, tekan Start, dan link tersertifikasi dalam 15 sampai 75 detik. Layar sentuh 5 inci menampilkan hasilnya sebagai peta link, OPM inline membaca sinyal PON 1490/1577 nm, dan memorinya menampung lebih dari 10.000 peta.
| type | Fiber multimeter (link mapper with inline PON OPM) |
|---|
| wavelengths | 1650 nm ±10 nm (filtered live test port) |
|---|
| dynamic range | 24 dB maximum link loss (single 1×64 splitter) |
|---|
| distance range | Up to 60 km |
|---|
| power range | −45 to +13 dBm at 1490 and 1577 nm (inline OPM) |
|---|
| power accuracy | ±0.5 dB |
|---|
| output power | Over −2.5 dBm (optional light source) |
|---|
| connector | Fixed SC/APC, optional field replaceable connector saver |
|---|
| fiber types | Singlemode 9/125 (G.652.D and G.657.A2) |
|---|
| builtin | Inline dual PON OPM 1490/1577 nm, optional OLS |
|---|
| display | 5 inch color touchscreen LCD, high resolution |
|---|
| battery | 10 Ah Li polymer, over 9 hours |
|---|
| storage | Over 10,000 link maps, 32 GB internal |
|---|
| connectivity | Micro USB OTG, optional WiFi, Bluetooth |
|---|
| weight | 0.7 kg nominal |
|---|
| dimensions | 150 × 150 × 70 mm |
|---|
| operating temp | −10 to 50 °C |
|---|
| test time | 15 to 75 seconds (length, IL, ORL, events) |
|---|
| standards | CE, RoHS, IEC 61010-1, ITU-T G.984/G.987/G.9807.1 |
|---|
