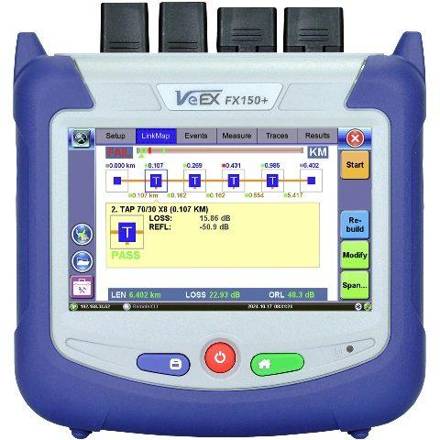

VeEX FX150+ Mini OTDR
Mini OTDR untuk FTTx, fronthaul/backhaul seluler, dan metro dengan sampai 256.000 titik data dan resolusi 3 cm. Port 1650 nm bisa menguji jaringan yang sedang beroperasi, dan Macrobend Buster membedakan tekukan dari sambungan. Ada opsi OPM, OLS, VFL, dan probe, dengan baterai lebih dari 9 jam.
| type | OTDR (handheld mini OTDR) |
|---|---|
| wavelengths | MM 850/1300 nm; SM 1310/1490/1550/1625/1650 nm |
| dynamic range | 22 to 46 dB (model dependent) |
| event dz | 0.8 m SM, under 1 m MM |
| atten dz | 3 to 5 m typical (model dependent) |
| distance range | 0.1 to 320 km SM, 0.1 to 80 km MM |
| sampling points | Up to 256,000 |
| sampling resolution | 3 cm up to 16 m (model dependent) |
| power range | −65 to +10 dBm or −50 to +26 dBm (optional OPM) |
| power accuracy | ±5 % |
| output power | Over −2.5 dBm SM, over −4 dBm MM (optional OLS) |
| connector | Fixed or universal interface (SC, ST, FC adapters) |
| fiber types | Singlemode 9/125 and/or multimode 50/125 |
| builtin | Optional OPM, OLS, VFL 650 nm, inspection probe |
| display | 5 inch TFT 800 × 480 color touchscreen |
| battery | 10 Ah Li Po, over 9 hours |
| storage | Over 10,000 traces, 32 GB internal |
| connectivity | Micro USB OTG, optional WiFi, Bluetooth, Ethernet |
| weight | 0.86 kg (2 lasers), 1.04 kg (3 lasers) |
| dimensions | 150 × 150 × 70 mm |
| operating temp | −10 to 50 °C |
| standards | CE, RoHS, IEC 61010-1, Telcordia SR-4731 |
