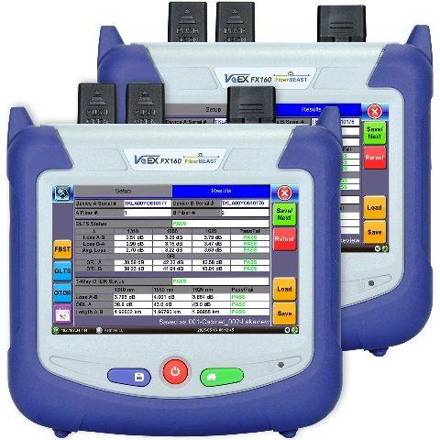

VeEX FX160 FiberBEAST OLTS + OTDR
OLTS dan OTDR dua arah dalam satu alat: sepasang FX160 saling berkomunikasi lewat serat yang diuji, jadi satu teknisi bisa mengukur insertion loss, ORL, dan OTDR sampai tiga panjang gelombang dari satu port tanpa harus berjalan ke ujung jauh. Layar sentuh 5 inci, baterai lebih dari 9 jam, dengan opsi WiFi dan Bluetooth.
| type | OLTS and OTDR (bidirectional, single port) |
|---|---|
| wavelengths | 1310/1550 nm or 1310/1550/1625 nm (up to 3) |
| dynamic range | 42/41/41 dB |
| event dz | 0.8 m |
| atten dz | 3.5 m typical |
| distance range | 0.1 to 200 km |
| sampling points | Up to 256,000 |
| sampling resolution | 3 cm up to 16 m (model dependent) |
| power range | −65 to +10 dBm or −50 to +26 dBm |
| power accuracy | ±5 % |
| output power | Over −2.5 dBm |
| connector | Fixed or field replaceable ferrule, FC/SC/ST/LC |
| builtin | OPM, OLS, ORL meter, optional VFL 650 nm |
| display | 5 inch TFT 800 × 480 color touchscreen |
| battery | 37.2 Wh Li Po, over 9 hours |
| storage | Over 10,000 traces, 30 GB micro SD |
| connectivity | Micro USB OTG, optional WiFi, Bluetooth, Ethernet |
| weight | 0.94 kg (2 lasers), 1.04 kg (3 lasers) |
| dimensions | 150 × 150 × 70 mm |
| operating temp | −10 to 50 °C |
| test time | 6 seconds (2 wavelengths, bidirectional IL + ORL) |
| standards | CE, WEEE, RoHS, IEC 61010-1, Telcordia SR-4731 |
