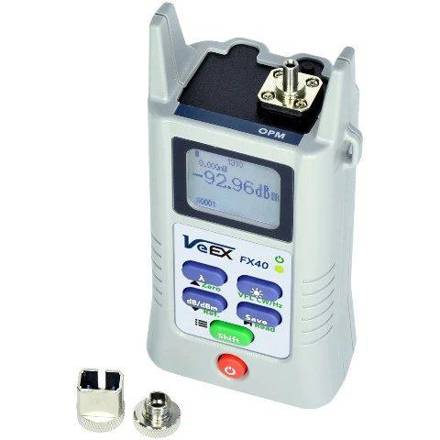

VeEX FX40 Series OPM / OLS
Keluarga power meter dan light source dengan harga ekonomis untuk PON, telekomunikasi, CATV, dan LAN/WAN, versi singlemode maupun multimode. Ada pilihan dual wavelength, pengaturan referensi, dan lebih dari 100 hasil tersimpan yang dipindahkan lewat USB ke Fiberizer lalu diunggah ke Fiberizer Cloud. Bodinya tahan cipratan air.
| type | Optical power meter and light source |
|---|---|
| wavelengths | 850/1300/1310/1490/1550/1625/1650 nm (OPM calibrated) |
| power range | −65 to +10 dBm (PM1) or −50 to +25 dBm (PM2) |
| power accuracy | Up to ±0.2 dB or 5 % |
| output power | Over −2.5 dBm; OLS 1310/1490, 1310/1550 or 850/1300 nm |
| connector | Universal 2.5 mm; FC, SC, ST, LC, E2000, 1.25 mm adapters |
| fiber types | Singlemode or multimode configurations |
| builtin | Optional VFL 650 nm, 1 mW (OPM + VFL configuration) |
| display | Monochrome transflective LCD 96 × 80 pixels, backlit |
| battery | 2 AA alkaline or NiMH 2150 mAh, about 100 hours |
| storage | Over 100 results (no timestamp) |
| connectivity | Micro USB |
| weight | Under 310 g (OPM configuration) |
| dimensions | 129 × 61 × 38 mm |
| operating temp | −10 to 50 °C |
| standards | CE, laser Class 1 per IEC 60825-1:2014 |
