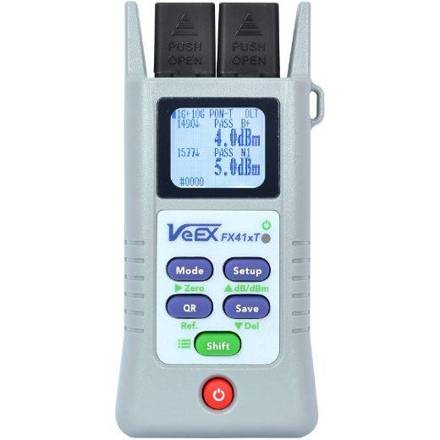

VeEX FX41xT PON Power Meter
Power meter PON selektif untuk jaringan GPON dan XGS-PON yang berdampingan, karena sinyal downstream 1490 dan 1577 nm terbaca sekaligus. Hasil langsung dinilai pass/fail sesuai kelas ODN, tersimpan sampai 2.000 hasil, dan bisa dipindah ke ponsel lewat QR code NoApp. Layarnya monokrom dengan kontras tinggi.
| type | PON power meter (selective, terminated) |
|---|---|
| wavelengths | 1490/1577 nm simultaneous (GPON and XGS-PON) |
| power range | −45 to +13 dBm at 1490 and 1577 nm |
| power accuracy | ±0.5 dB |
| connector | Fixed SC/APC |
| builtin | Optional VFL 655 nm or broadband OPM −50 to +25 dBm |
| display | High contrast transflective monochrome LCD, backlit |
| battery | 2 AA alkaline or NiMH 2150 mAh, 75 hours or more |
| storage | Over 2,000 single or 1,000 dual wavelength results |
| connectivity | Micro USB, NoApp QR code |
| weight | 200 g (including batteries) |
| dimensions | 129 × 61 × 38 mm |
| operating temp | −10 to 50 °C |
| standards | ITU-T G.984.2, ITU-T G.9807.1, IEEE 802.3av |
