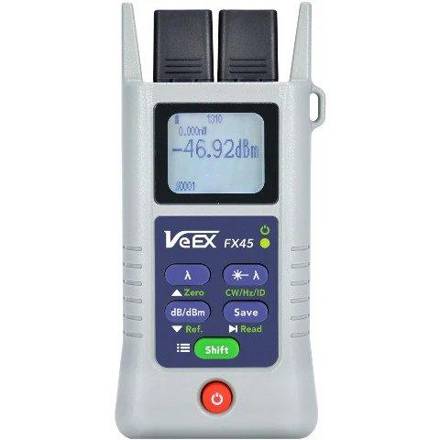

VeEX FX45 / FX48 Series OPM / OLS / OLTS
Satu tingkat di atas seri FX40, tersedia dalam konfigurasi OPM, OLS, atau OLTS dengan dual wavelength. WaveID mengenali panjang gelombang dari light source VeEX secara otomatis, dan deteksi frekuensi membantu identifikasi serat. Lebih dari 1.000 hasil tersimpan lengkap dengan waktu pengukurannya.
| type | Optical power meter, light source and OLTS |
|---|---|
| wavelengths | 850/1300/1310/1490/1550/1625/1650 nm (OPM calibrated) |
| power range | −65 to +10 dBm (PM1) or −50 to +25 dBm (PM2) |
| power accuracy | ±0.2 dB or 5 % |
| output power | Over −2.5 dBm; OLS 1310/1490, 1310/1550 or 850/1300 nm |
| connector | Fixed or universal adapters FC, SC, ST, LC, 1.25/2.5 mm |
| fiber types | Singlemode and multimode |
| builtin | WaveID wavelength detection, tone detection 270 Hz to 2 kHz |
| display | Monochrome transflective LCD 96 × 80 pixels, backlit |
| battery | 2 AA alkaline or NiMH 2150 mAh, about 80 hours |
| storage | Over 1,000 single wavelength results, timestamped |
| connectivity | Micro USB |
| weight | Under 310 g (OPM configuration) |
| dimensions | 129 × 61 × 38 mm |
| operating temp | −10 to 50 °C |
| standards | CE, laser Class 1 |
