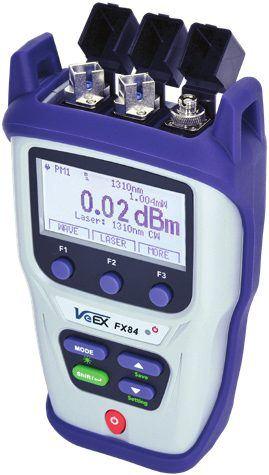

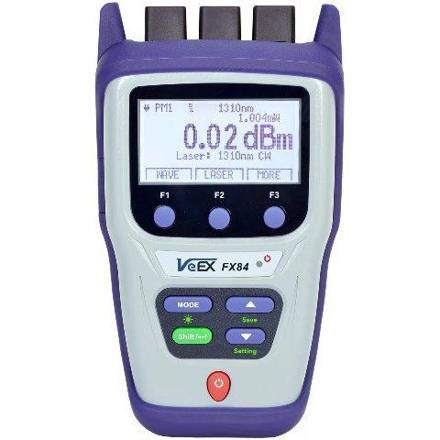

VeEX FX84 Optical Loss Test Set
Optical loss test set dengan port power meter dan light source terpisah, jadi dua teknisi di kedua ujung serat bisa mengukur loss bersamaan. Auto loop menggilir panjang gelombang dan WaveID mengenalinya otomatis; sampai 1.920 hasil tersimpan, ditarik lewat USB atau Bluetooth opsional. Bodinya tahan cipratan dan debu.
| type | OLTS (unidirectional, separate OPM and OLS ports) |
|---|---|
| wavelengths | OLS 1310/1490/1550/1625 nm SM, 850/1300 nm MM |
| power range | −70 to +10 dBm (PM1) or −50 to +25 dBm (PM2) |
| power accuracy | ±5 % (±0.22 dB) |
| output power | Over −2.5 dBm SM, over −4 dBm MM, about 0 dBm typical |
| connector | Fixed SC/FC/ST/LC or universal interface |
| fiber types | Singlemode 9/125 and multimode 50/125 |
| builtin | WaveID, auto loop, optional VFL 655 nm 1 mW |
| display | High contrast LCD 124 × 68 pixels, backlit |
| battery | Li polymer; OLS over 55 h, OPM about 34 h (no backlight) |
| storage | 1,920 single wavelength records, timestamped |
| connectivity | Micro USB or optional Bluetooth |
| weight | Under 400 g |
| dimensions | 164.39 × 100 × 46.93 mm |
| operating temp | −10 to 50 °C |
| standards | Laser Class 1M (OLS), Class 2 (VFL) |
