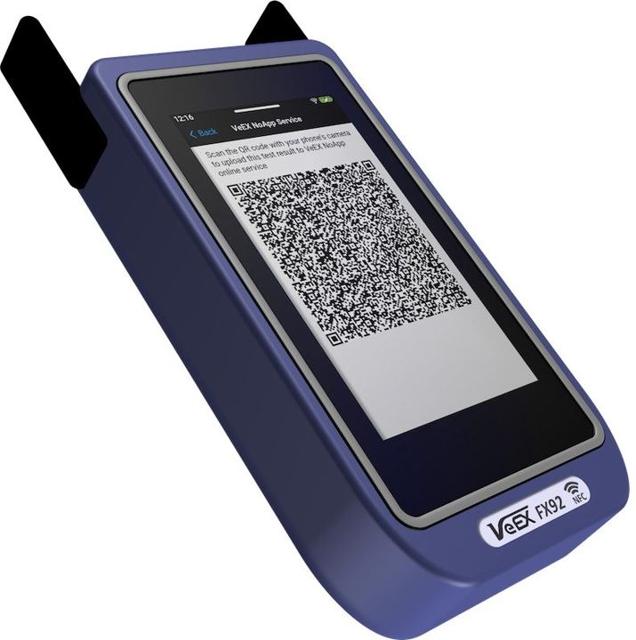

VeEX FX92 DWDM Optical Channel Checker

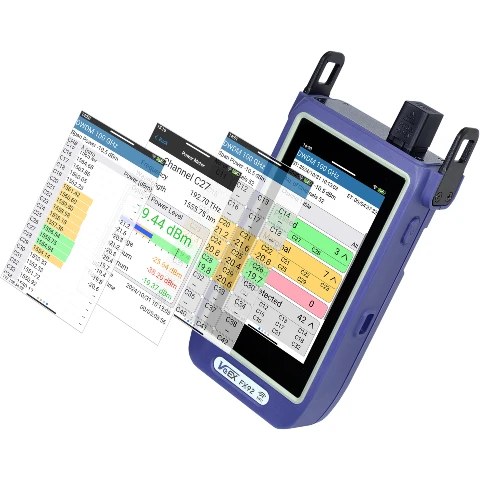

Pemeriksa kanal DWDM genggam untuk link DCI dan metro: memindai seluruh C band pada grid 100 GHz dan menampilkan panjang gelombang, frekuensi, serta daya tiap kanal sebagai ringkasan, ubin, grafik, atau tabel. Channel plan bisa diatur, ada mode OPM, laporan HTML/PDF, dan transfer lewat NFC/QR. 605 g, baterai 6 jam.
| type | DWDM optical channel checker (C band) |
|---|---|
| wavelengths | 1527.60 to 1569.59 nm (C band), ITU-T 100 GHz grid, 50 GHz optional |
| power range | −40 to 0 dBm per channel at 50 GHz; 24 dBm maximum composite power |
| power accuracy | 0.9 dB relative; ±6.25 GHz frequency accuracy |
| sampling resolution | 0.01 nm peak wavelength resolution, 0.1 dB power resolution |
| display | 5 inch TFT color touchscreen, 720 × 1280 |
| storage | 1.7 GB internal, USB C memory stick |
| connectivity | USB C PD, NFC, optional WiFi and USB C Ethernet adapter, VeSion R-Server |
| battery | 7200 mAh Li ion, 6 hours or more continuous operation |
| connector | Fixed SC/APC; optional field replaceable connector protector |
| weight | 605 g including battery |
| dimensions | 107 × 202 × 44 mm |
| operating temp | −5 to 50 °C |
