PT. Sinar Surya Komunikatama / Produk

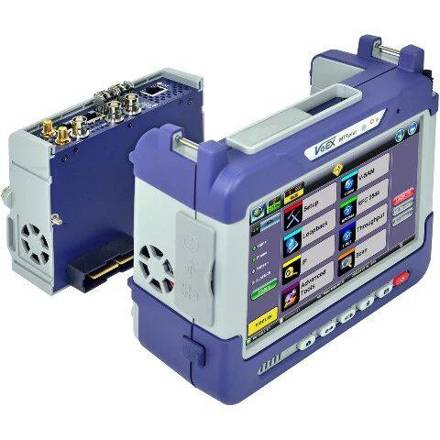

VeEX MTTplus-340 Multi Service Module
Modul multi layanan untuk MTTplus, dari 64 kbps sampai 14 Gbps: Ethernet hingga 10G, OTN, SDH/SONET, PDH/DSn, Fibre Channel sampai 16G, CPRI, C37.94, dan uji sinkronisasi. Dua port ujinya independen, sehingga dua pengukuran bisa berjalan bersamaan. Cocok untuk tim yang masih merawat sirkuit lama di samping Ethernet.
| type | Ethernet/transport tester module (MTTplus platform) |
|---|---|
| rates | 64 kbps to 14 Gbps (10GE, 16G FC, 12G CPRI, OTU2e) |
| interfaces | 2 SFP+/SFP, 2 RJ45, 3 BNC, 1 RJ48, 2 SMA clock |
| protocols | Ethernet, OTN, SDH/SONET, PDH/DSn, FC, CPRI, C37.94, SyncE |
| test functions | RFC 2544, Y.1564, RFC 6349, BERT, OAM, jitter, wander |
| ports | 2 independent test ports |
| display | 7 inch TFT 800 × 480 touchscreen (MTTplus platform) |
| battery | Li ion 5800 mAh 10.8 V (MTTplus platform) |
| storage | 8 GB USB flash (MTTplus platform) |
| connectivity | USB, Ethernet, optional WiFi, BT (MTTplus platform) |
| weight | 0.84 kg (MTTplus platform) |
| dimensions | 188 × 168 × 80 mm (MTTplus platform) |
| operating temp | −10 to 50 °C (MTTplus platform) |
