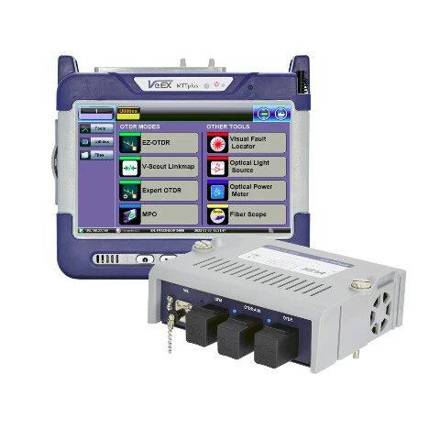

VeEX MTTplus-410+ Fiber Optics Module
Modul serat optik yang mengubah MTTplus menjadi OTDR 1310/1550 nm dengan resolusi 3 cm, 500.000 titik sampel, dynamic range sampai 50 dB, dan event dead zone 0,85 m. Port terfilter 1625/1650 nm untuk uji jaringan yang sedang aktif, ditambah opsi OPM, light source, dan VFL. Geotag dan foto ikut tersimpan di tiap titik uji.
| type | OTDR module (MTTplus platform) |
|---|---|
| wavelengths | 1310/1550//1625//1650 nm (singlemode) |
| dynamic range | 38 to 50 dB (model dependent) |
| event dz | 0.7 to 0.85 m typical |
| atten dz | 3.5 m typical (4 m for 1550 nm 50 dB model) |
| distance range | 0.1 to 400 km |
| sampling points | Up to 500,000 |
| sampling resolution | 3 cm to 16 m |
| power range | −65 to +10 dBm (PM1) or −50 to +26 dBm (PM2) |
| power accuracy | ±5 % (0.2 dB) |
| output power | Over −2.5 dBm (optional OLS) |
| connector | Fixed or universal interface with interchangeable adapters |
| fiber types | Singlemode |
| builtin | Optional OPM, OLS, VFL, internal launch fiber |
| display | 7 inch TFT 800 × 480 color touchscreen (MTTplus platform) |
| battery | Li ion 5800 mAh 10.8 V (MTTplus platform) |
| storage | 8 GB USB flash (MTTplus platform) |
| connectivity | USB, Ethernet, optional WiFi, BT (MTTplus platform) |
| weight | 0.466 kg (module); 0.84 kg (MTTplus platform) |
| dimensions | 188 × 168 × 80 mm (MTTplus platform) |
| operating temp | −10 to 50 °C |
| standards | Telcordia SR-4731, laser Class 1 21 CFR 1040.10 |
