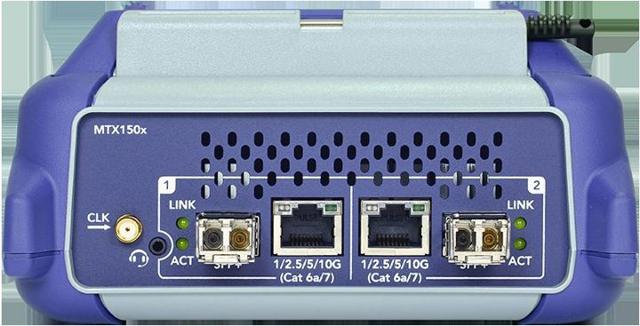

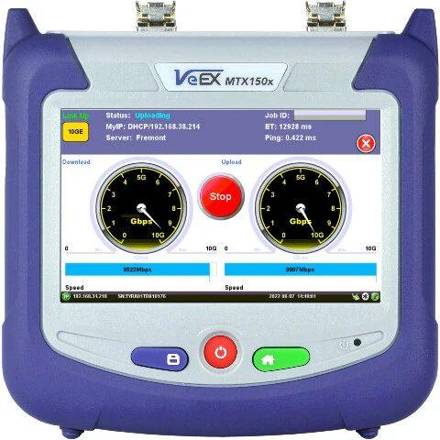

VeEX MTX150x Ethernet Test Set
Test set instalasi Ethernet paling ringkas di kelasnya, dengan RJ45 multi gigabit native 1G, 2.5G, 5G, dan 10GBASE-T tanpa adaptor, plus port optik 1G/10GBASE-X. Dua port sampai 10 Gbps mencakup Layer 1 sampai 4+ dan Fibre Channel untuk Carrier Ethernet, metro, akses, layanan bisnis, dan SAN. Ada opsi WiFi dan Bluetooth.
| type | Ethernet/transport tester (Ethernet and Fibre Channel) |
|---|---|
| rates | 10 Mbps to 10 Gbps |
| interfaces | Dual native RJ45 up to 10GBASE-T, dual SFP+ up to 10GBASE-R |
| protocols | Ethernet L1 to 4+, Fibre Channel 1/2/4G, SyncE, IPv4/IPv6 |
| test functions | RFC 2544, Y.1564, RFC 6349, BERT, speed test, FTP, VoIP |
| ports | 2 test ports (dual port up to 10 Gbps) |
| display | 5 inch WVGA 800 × 480 TFT color touchscreen |
| battery | 56 Wh Li ion, over 12 hours idle |
| storage | 16 GB internal flash |
| connectivity | Micro USB OTG, optional WiFi, Bluetooth, 10/100 Ethernet |
| weight | 1.0 kg |
| dimensions | 150 × 150 × 80 mm |
| operating temp | 0 to 45 °C |
| standards | CE, RoHS |
