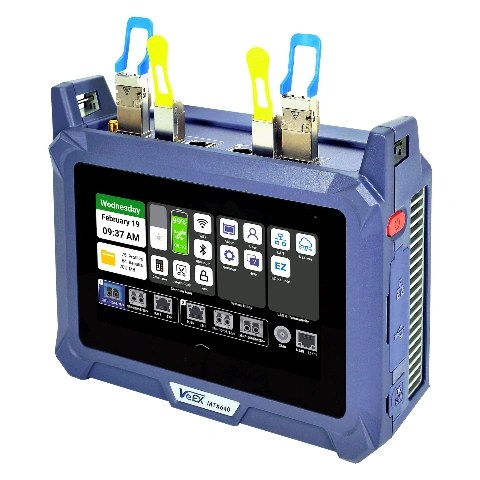

VeEX MTX640 Dual 100G / 400G Portable Test Set
Test set genggam 100G/400G paling ringkas di kelasnya untuk komisioning link DCI, transceiver, AOC/DAC, dan perangkat di pusat data. Dua mesin uji menjalankan dua tes 100GE sekaligus, 400GE dibuka lewat opsi perangkat lunak, siap uji dua menit setelah dinyalakan. Layar sentuh 7 inci, 400G sampai 10M termasuk RJ45 10GBASE-T.
| type | Ethernet/transport tester (handheld, dual 100G / 400G) |
|---|---|
| rates | 10 Mbps to 400 Gbps; 2×100GE concurrent, 1×400GE (software option) |

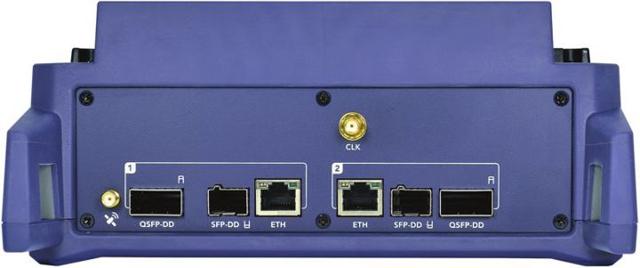

| interfaces | 1× QSFP-DD/QSFP56, 2× QSFP28/QSFP+, 2× SFP-DD/SFP56/SFP28, 2× SFP+/SFP, 2× RJ45 |
| protocols | Ethernet Layers 2 to 4, stateful TCP up to 400GE, PCS/FEC, I2C/MDIO transceiver access |
| test functions | RFC 2544, Y.1564, BERT, throughput, FEC symbol error distribution, skew, transceiver power monitoring |
| ports | Dual test ports for all form factors; native PAM4 hardware |
| display | 7 inch TFT color LCD, 1024 × 600, capacitive multi touch |
| storage | 32 GB internal flash, USB memory sticks and SSD |
| connectivity | 1× RJ45 management, WiFi 802.11a/b/g/n, Bluetooth 4.2, USB A and USB C, optional GNSS |
| battery | High capacity Li ion, over 1 hour running 400GE tests |
| weight | 2.3 kg |
| dimensions | 226 × 190 × 85 mm |
| operating temp | 0 to 40 °C (below 32 °C recommended for 400GE) |
| standards | 400GBASE-SR8/FR8/LR8/DR4/FR4/LR4, 100G LR1/FR1, QSFP-DD, QSFP56, SFP-DD, SFP56 |
