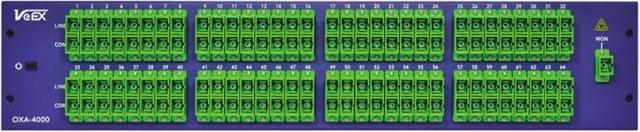

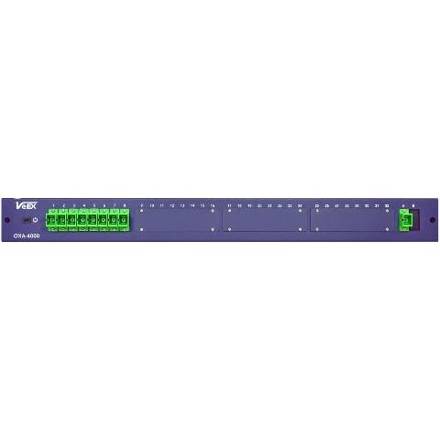

VeEX OXA-4000 Optical Test Access Unit
Unit akses uji optik 1U untuk memperbanyak kanal RTU-4000: satu OTDR bisa bergiliran memeriksa 8 sampai 128 serat, dikendalikan lewat kabel DB25. Dengan opsi filter WDM, serat aktif tetap bisa dipantau di 1625 atau 1650 nm tanpa mengganggu layanan. Konektor SC/APC atau LC/APC, tahan lebih dari semiliar siklus.
| type | Optical switch (test access unit for RTU-4000) |
|---|---|
| channels | 1×8, 1×16, 1×32, 1×64 and 1×128; up to 1×64 with FWDM |
| ports | 1 input port |
| connector | SC/APC, SC/UPC or LC/APC |
| wavelengths | 1260 to 1670 nm; FWDM for 1625 or 1650 nm OTDR |
| fiber types | Singlemode |
| test time | Switching time 15 ms or less |
| connectivity | DB25 control and power from RTU-4000 |
| dimensions | 1U: 483 × 280 × 44.5 mm; 1×128 SC 3U: 483 × 280 × 177 mm |
| weight | Under 3 kg (1U); under 4.7 kg (1×128) |
| operating temp | −20 to 70 °C |
| install | 19, 21 or 23 inch rack, 280 mm depth |
