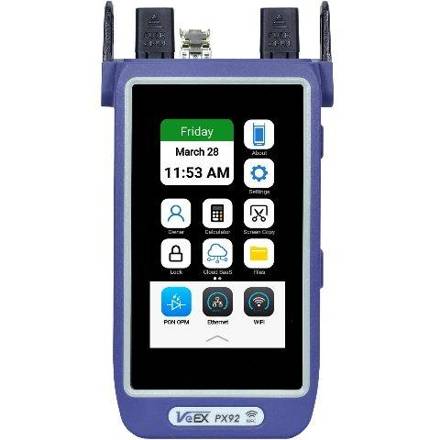

VeEX PX92 / PX92T PON Analyzer
PON analyzer dan test set QoE multi gigabit untuk GPON dan XGS-PON, dengan port RJ45 dan SFP+ serta speed test sampai 10 Gbps. PX92 untuk aktivasi (mode pass through, ID OLT/ONT), PX92T untuk konstruksi dengan dua power meter PON 1490/1577 nm. Keduanya dapat mengemulasi ONT, menguji WiFi, dan mengirim hasil lewat NFC atau NoApp.
| type | PON analyzer (GPON and XGS-PON) and service QoE tester |
|---|---|
| wavelengths | PX92 1490/1577//1270/1310 nm; PX92T 1490/1577 nm |
| power range | PX92 DS −35 to +2 dBm; PX92T DS −40 to −5 dBm |
| power accuracy | 0.5 dB |
| rates | Up to 10 Gbit/s Ethernet, WiFi up to 2 Gbit/s |
| interfaces | RJ45 10/100/1000, 2.5G/5G/10GBASE-T; SFP+ 1G/10G; WiFi |
| protocols | GPON, XG(S)-PON, IPv4/IPv6, PPPoE, DHCP, ONT emulation |
| test functions | Ookla Speedtest, RFC 6349 TCP/UDP, iPerf3, ping, traceroute |
| ports | 2 optical (PX92) or 1 optical (PX92T), RJ45, SFP+ |
| bands | WiFi 2.4/5/6 GHz, 802.11 a/b/g/n/ac/ax/be |
| display | 5 inch TFT 720 × 1280 capacitive multi touch |
| battery | 36 Wh Li ion 3300 mAh, more than one day |
| storage | 18 GB internal flash |
| connectivity | USB Type C PD, NFC, optional WiFi and Ethernet adapters |
| weight | PX92 687 g, PX92T 618 g |
| dimensions | 107 × 202 × 44 mm |
| operating temp | −5 to 50 °C |
| standards | CE, WEEE, RoHS, ITU-T G.984.3 |
