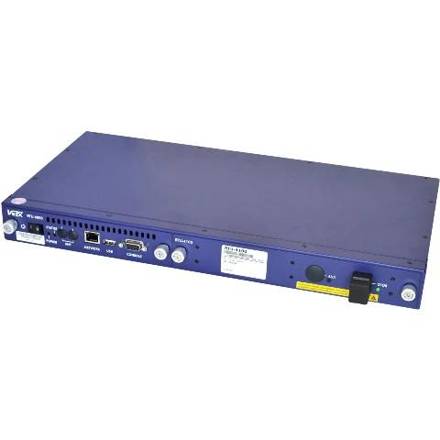

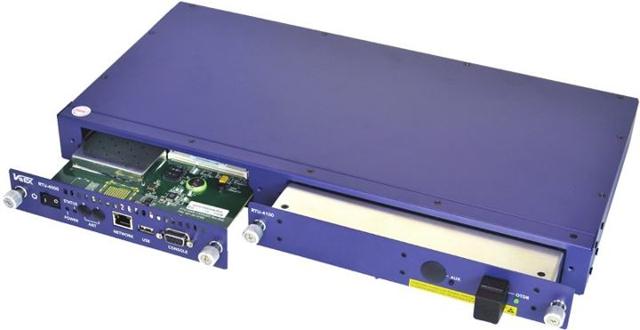

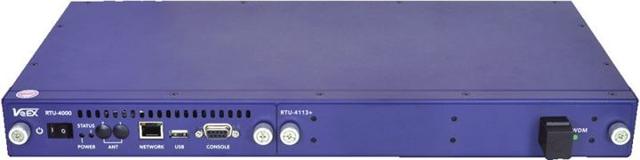

VeEX RTU-4000 / RTU-4100 Remote Fiber Test System
Sistem pemantauan serat jarak jauh (RFTS): OTDR rak 1U dengan switch optik terpasang, memantau serat gelap maupun aktif di 1550, 1625, atau 1650 nm nonstop. Degradasi terdeteksi sebelum menjadi gangguan, titik putus tampil di peta, alarm dikirim server VeSion lewat email, SNMP, atau SMS. RTU-4100 memiliki kanal lebih banyak.
| type | RFTS unit (1U rack mount remote OTDR) |
|---|---|
| wavelengths | 1550, 1625 (F), 1650 (F) nm (module dependent) |
| dynamic range | 41 to 50 dB (module dependent) |
| event dz | Under 1 m |
| atten dz | 3 m; under 4 m typical (4.5 m at 45 dB or higher) |
| distance range | Up to 400 km (bidirectional monitoring) |
| sampling points | Up to 500,000 |
| sampling resolution | 3 cm to 16 m |
| channels | 8 to 288 ports via optical switch; cascade up to 4,592 |
| ports | RJ45, RS-232, DB25, USB, alarm relay contacts |
| connector | Fixed or universal, APC or UPC |
| builtin | Built in G.657A2 launch fiber, live fiber 1625/1650 nm |
| connectivity | 10/100BASE-T Ethernet, RS-232, DB25, USB |
| protocols | IPv4/IPv6, HTTP+JSON API, SNMP, email, SMS, relay alarms |
| storage | Optional microSD card up to 256 GB |
| dimensions | 1U: 483 × 300 × 38 mm |
| weight | Under 3 kg |
| operating temp | −20 to 50 °C |
| install | 19, 21 or 23 inch rack, 1U |
| standards | Telcordia SR-4731 (.sor) |
