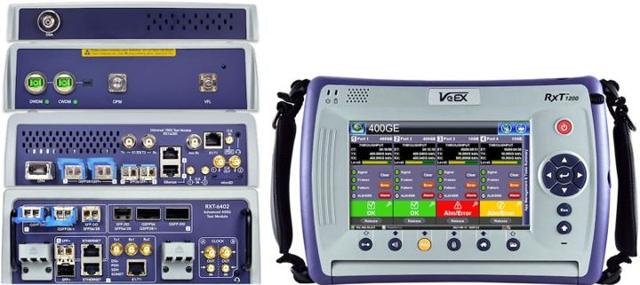

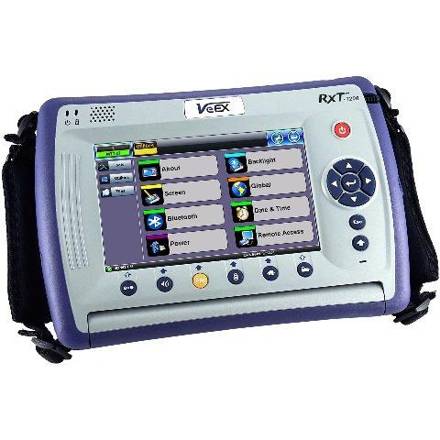

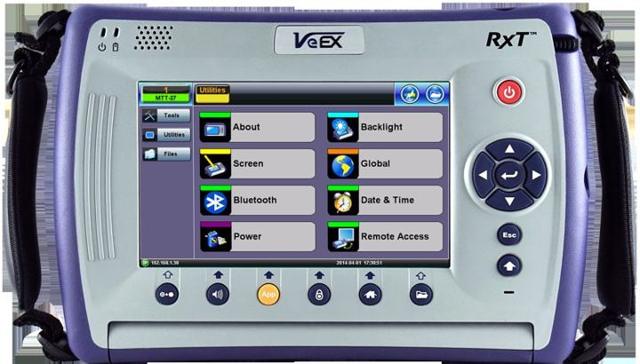

VeEX RXT-1200 Modular Test Platform
Platform uji genggam modular yang paling fleksibel di kelasnya: satu unit tangguh untuk pekerjaan core, pusat data, metro, akses, sampai serat optik. Cukup pilih modulnya, dari 64 kbps sampai 400G, mulai eCPRI, CPRI/OBSAI, OTN, SDH/SONET, Carrier Ethernet, SyncE, dan Fibre Channel sampai OTDR dan OSA.
| type | Ethernet/transport tester (modular handheld platform) |
|---|---|
| rates | 64 kbps to 400G (module dependent) |
| interfaces | Modules: 2×400G, 1×400G, 2×100G, 2×16G, OSA, OTDR |
| protocols | OTN, SDH/SONET, PDH/DSn, Ethernet, SyncE, FC, CPRI/OBSAI |
| display | 7 inch TFT 800 × 480 color touchscreen |
| battery | 99 Wh Li ion 10.8 V, field replaceable |
| storage | 16 or 32 GB SD card, USB stick up to 64 GB |
| connectivity | RJ45 10/100BASE-T, 2 × USB 2.0, WiFi and Bluetooth via USB |
| gnss | Optional GNSS receiver (single or multi band), atomic clock |
| frequency range | 2.400 to 2.495 GHz, 5.150 to 5.850 GHz (WiFi SA option) |
| weight | 1.85 kg chassis with battery |
| dimensions | 267 × 180 × 66 mm chassis |
| operating temp | −10 to 50 °C |
