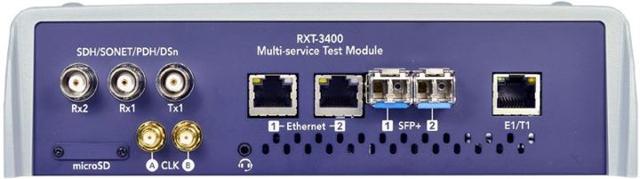

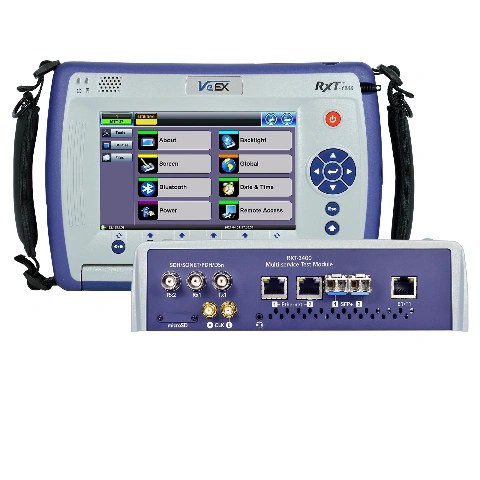

VeEX RXT-3400 Advanced Multi Service Test Module
Modul BER tester serba bisa untuk RXT-1200, 64 kbps sampai 14 Gbps lewat dua port SFP+/SFP: Ethernet 1G/10G, OTN, SDH/SONET, PDH/DSn, Fibre Channel sampai 16G untuk SAN, dan CPRI. Ditambah RFC 2544, SyncE, jitter, dan wander. Cocok untuk uplink server, jaringan storage, dan transport yang masih membawa layanan lama.
| type | Multi service BER tester module (64 kbps to 16G FC) for RXT-1200 |
|---|---|
| rates | 64 kbps to 14 Gbps; 10GE, OTU2e, STM-64, 16G Fibre Channel, CPRI 12.165G |
| interfaces | 2× SFP+/SFP (LC), optional BNC and RJ48/Bantam for E1/E3/E4, DS1/DS3, STM-1e |
| protocols | Ethernet, OTN OTU1/OTU2/OTU2e, SDH/SONET, PDH/DSn, Fibre Channel 1 to 16G, CPRI/OBSAI, IEEE C37.94 |
| test functions | RFC 2544, Y.1564 V-SAM, RFC 6349 V-PERF, BERT with PRBS, service disruption time, SyncE, jitter and wander MTIE/TDEV, packet capture |
| ports | Two fully independent test port groups |
| weight | 1.06 kg module; 1.32 kg RXT-1200 platform; 0.54 kg battery |
| operating temp | 0 to 45 °C |
| standards | ITU-T G.8261 SyncE, ITU-T Y.1564, RFC 2544, RFC 6349 |
