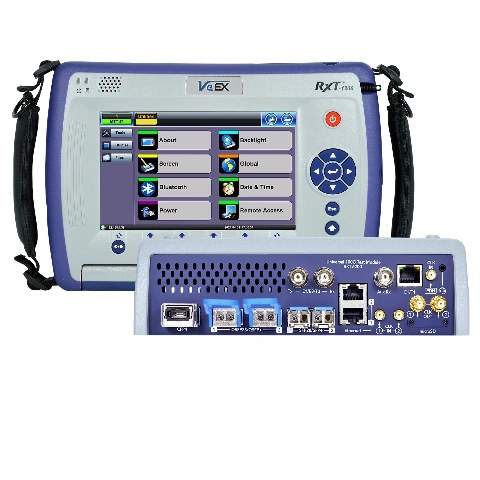

VeEX RXT-6200 100G Universal Test Module
Modul 100G paling lengkap di RXT-1200 untuk komisioning uplink pusat data, DCI, backbone, dan mobile backhaul. Dua tes 100GE serentak, breakout 4 × 25GE dan 4 × 10GE, plus Fibre Channel sampai 32G, OTN, SDH/SONET, PDH, dan CPRI dari 1,5 Mbps sampai 100 Gbps. Port CFP4, QSFP28, QSFP+, SFP28, SFP+, dan RJ45 semuanya tersedia.
| type | Ethernet/transport tester module (dual 100G) for RXT-1200 |
|---|---|
| rates | 1.5 Mbps to 100 Gbps; 2×100GE concurrent, 4×25GE and 4×10GE breakout |

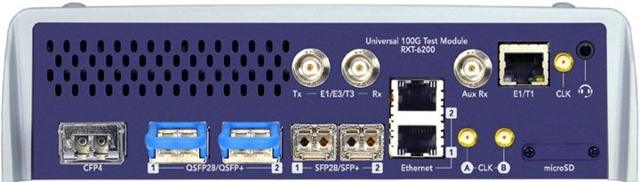

| interfaces | CFP4 and QSFP28 (100GE, OTU4, 50GE), QSFP+ (40GE, OTU3), SFP28 (25GE, 32/16G FC, CPRI 10), SFP+/SFP, 2× RJ45 |
| protocols | Ethernet 10M to 100G, OTN OTU1 to OTU4, SDH/SONET, PDH/DSn, Fibre Channel 1 to 32G, CPRI/eCPRI |
| test functions | RFC 2544, Y.1564 V-SAM, RFC 6349, lane BERT, PCS/RS-FEC, packet capture with Wireshark decode, one way delay |
| ports | Independent dual port testing up to 2×112G |
| connectivity | 2× SMA external reference clock inputs; management via RXT-1200 platform |
| weight | RXT-1200 chassis 1.32 kg plus module |
| dimensions | 208 × 153 × 70 mm module; 260 × 180 × 100 mm combined test set |
| operating temp | 0 to 45 °C |
| standards | IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, MPLS-TP OAM, ITU-T G.709 |
