Modul multi layanan 400G ganda untuk platform RXT: dua port uji 400GE yang menerima semua form factor transceiver yang umum, AOC, dan DAC. Selain Ethernet dari 400G turun sampai 10M, ada juga OTN, SDH/SONET, PDH/DSn, dan Fibre Channel. Dipakai untuk transport, agregasi, cross connect, dan 5G xhaul, dari lab sampai lapangan.
| type | Ethernet/transport tester module (dual 400G) |
|---|
| rates | 10 Mbps to 400 Gbps; 2×400GE concurrent |
|---|

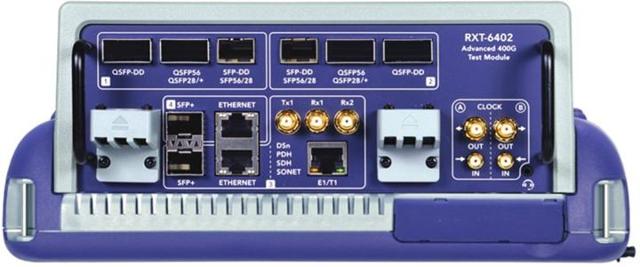

| interfaces | Dual QSFP-DD, QSFP56/28/+, SFP-DD/56/28, SFP+/SFP, RJ45 |
|---|
| protocols | Ethernet, OTN OTU1 to OTU4, SDH/SONET, PDH/DSn, FC 1 to 32G |
|---|
| test functions | RFC 2544, Y.1564, RFC 6349, lane BERT, FEC/PCS analysis |
|---|
| ports | 4 independent test port groups (2 on HSE version) |
|---|

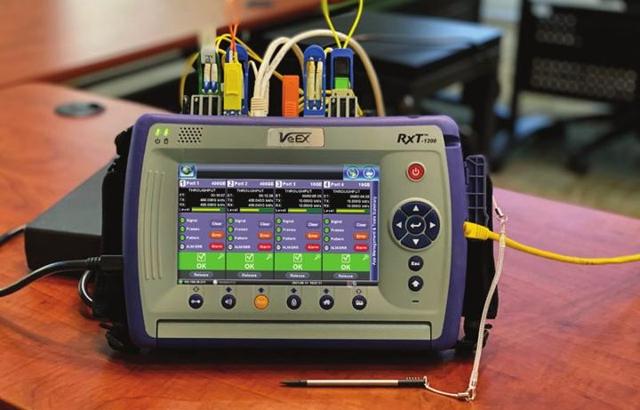

| display | Color LCD touchscreen (RXT-1202 platform) |
|---|
| battery | Over 30 minutes at 400GE (high capacity Li ion pack) |
|---|
| connectivity | LAN, WiFi and Bluetooth management options |
|---|

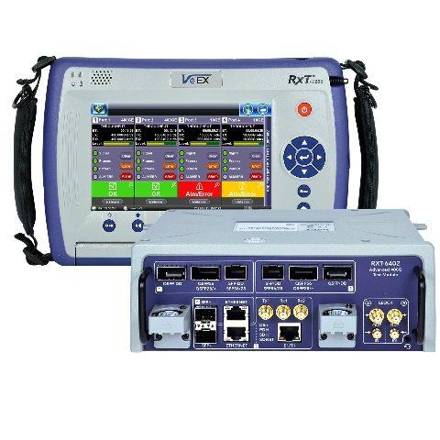

| weight | 1.73 kg module; 3.59 kg test set with RXT-1202 and battery |
|---|
| dimensions | 208 × 155 × 77 mm module; 260 × 200 × 108 mm combined |
|---|
| operating temp | 0 to 40 °C (below 32 °C recommended for 400GE) |
|---|
| standards | IEEE 802.3bs; 400GBASE-SR8/FR8/LR8/DR4/FR4/LR4/CR8, 400ZR |
|---|
