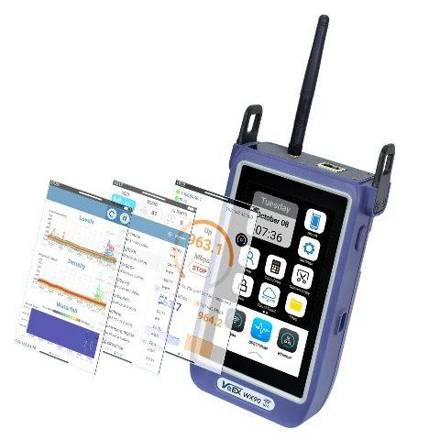

Toolkit uji WiFi untuk teknisi yang menangani jaringan rumah maupun enterprise, dengan spectrum analyzer 2,4, 5, dan 6 GHz serta validasi QoE internet. Layar sentuh kapasitif, penyimpanan internal besar, dan hasil uji langsung bisa dibagikan lewat NFC atau layanan cloud NoApp.
| type | WiFi tester with spectrum analyzer |
|---|
| frequency range | 2.400 to 2.484 GHz and 5.000 to 7.125 GHz |
|---|
| bands | 2.4, 5 and 6 GHz; 802.11 a/b/g/n/ac/ax/be (WiFi 7) |
|---|
| test range | Spectrum analyzer −110 to −6.5 dBm |
|---|
| rates | WiFi up to 1.8 Gbit/s, Ethernet up to 1 Gbit/s |
|---|

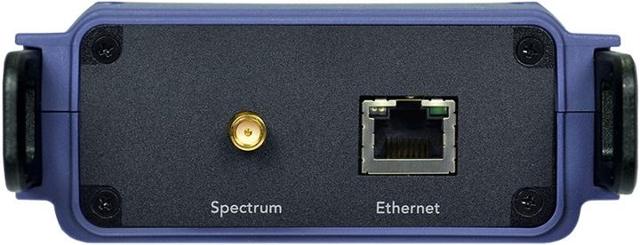

| interfaces | 10/100/1000BASE-T RJ45 with PoE detection, WiFi 2×2:2 |
|---|
| test functions | Speedtest, iPerf, channel/client scan, heatmap, spectrum |
|---|
| poe | PoE detection (yes/no) |
|---|

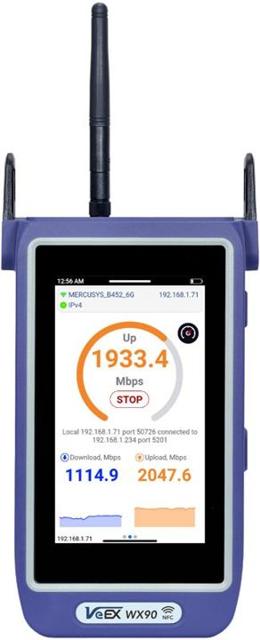

| display | 5 inch TFT 720 × 1280 capacitive multi touch |
|---|
| battery | 24 Wh Li ion 7200 mAh, more than one day |
|---|
| storage | 18 GB internal flash |
|---|
| connectivity | Built in WiFi, NFC, USB Type C, 1000BASE-T |
|---|
| weight | 605 g / 545 g including battery |
|---|
| dimensions | 107 × 202 × 44 mm |
|---|
| operating temp | −5 to 50 °C |
|---|
| standards | CE, WEEE, RoHS |
|---|
