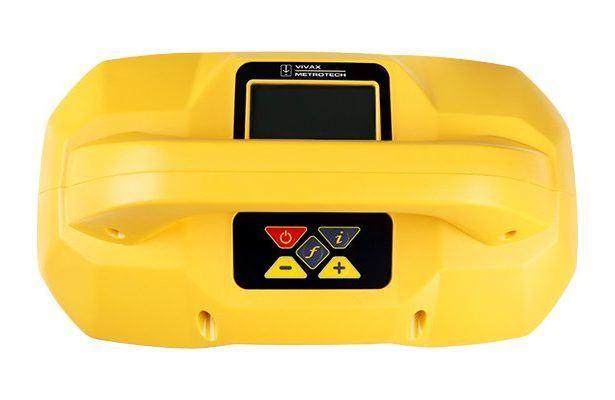

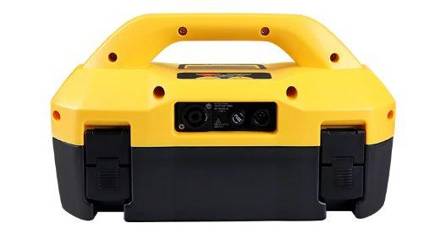

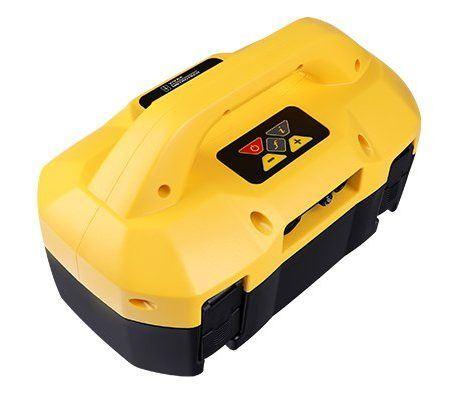

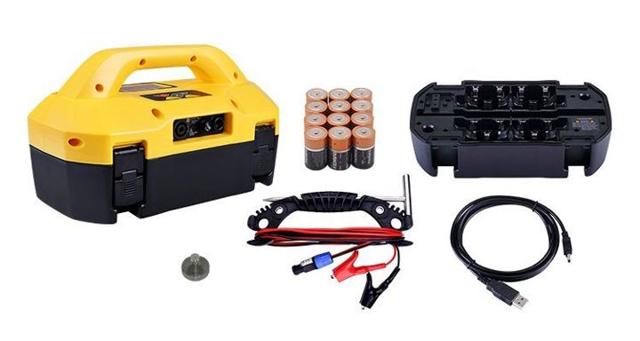

Transmitter broadband 10 watt (keluaran 1 A) untuk receiver vLoc3, bekerja 98 Hz sampai 200 kHz lewat induksi maupun sambungan langsung. Ada mode Signal Direction, pencari gangguan sampai 1 MΩ, dan meter AVO bawaan. Bodinya berperingkat IP54.
| type | Transmitter (10 W pipe and cable locator transmitter) |
|---|
| frequencies | 98 Hz to 200 kHz; defaults 512 Hz, 8.19, 33, 65, 200 kHz |
|---|
| tx power | 10 W below 45 kHz, 1 W above; 1 A RMS, 50 V RMS max |
|---|
| display | Monochrome dot matrix LCD 60 × 32 mm, LED backlight |
|---|
| battery | 12 D alkaline 4 to 25 h; Li ion tray 6 to 50 h (by power) |
|---|
| connectivity | speakON output socket, mini USB, 12 to 22 V DC input |
|---|
| weight | 4.4 kg alkaline tray; 3.24 kg rechargeable tray |
|---|
| dimensions | 332 × 182 × 185 mm |
|---|
| ip rating | IP54 |
|---|
| operating temp | −20 to 50 °C |
|---|
| warranty | 24 months (with alkaline battery tray) |
|---|
| standards | CE, FCC Part 15, ISO 9001:2015 |
|---|
