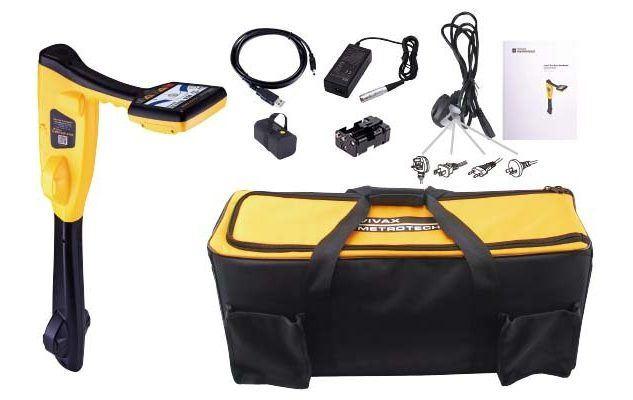

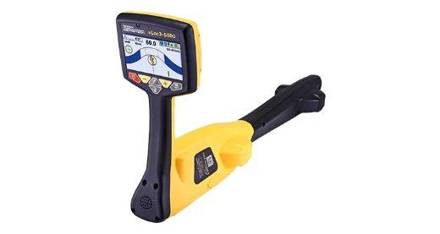

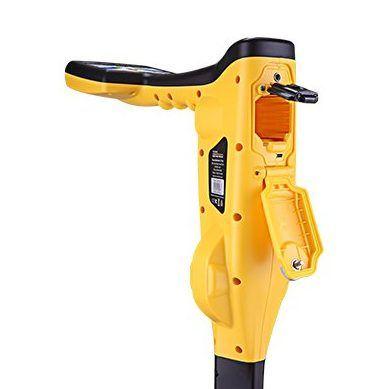

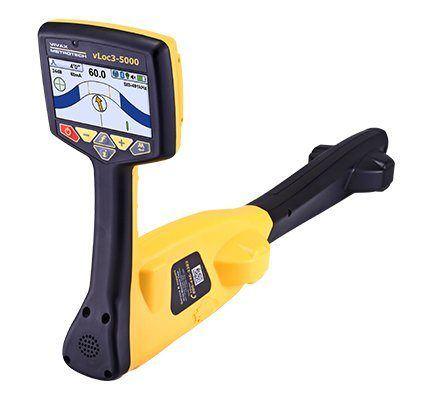

Vivax-Metrotech vLoc3-5000
Receiver utilitas 98 Hz sampai 200 kHz dengan layar warna 4,3 inci yang memberi peringatan distorsi lewat teknologi Signal Select. GPS internal memetakan aset langsung di lapangan, lalu Bluetooth dan WiFi memindahkan datanya ke MyLocator3 dan VMMap. Bodinya tahan air dan debu.
| type | Cable locator receiver |
|---|---|
| frequencies | 98 Hz to 200 kHz; SiS 491/982/8440 Hz, 9.82 kHz |
| passive modes | Power 50/60 Hz, harmonics, radio 10 to 22.7 kHz |
| depth range | Max depth displayed 30 m |
| depth accuracy | ±3 % of depth |
| gnss | Internal GNSS (GPS, GLONASS, Galileo, BeiDou), 1.5 m CEP |
| display | 4.3 inch color LCD 480 × 272, auto backlight |
| battery | Li ion about 30 h continuous; 6 AA alkaline about 10 h |
| storage | 50 million records |
| connectivity | Bluetooth 4.2, WiFi 802.11b/g/n, mini USB |
| weight | 2.1 kg |
| dimensions | 321 × 124 × 676 mm |
| ip rating | IP65 |
| operating temp | −20 to 50 °C |
| warranty | 24 months |
| standards | CE, FCC Part 15, ISO 9001:2015 |
