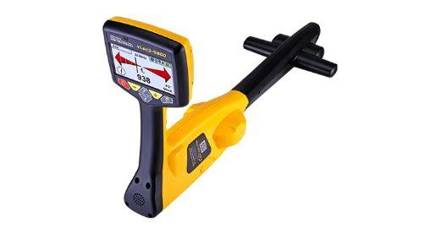

Locator utilitas 98 Hz sampai 131 kHz dengan antena pandu, displacement, dan kompas, plus panah kiri kanan yang menuntun Anda mengikuti jalur tertanam. Receiver seberat 2 kg ini kedap IP65 dan mencatat sampai 50 juta rekaman. Hasilnya dipetakan lewat aplikasi VMMap.
| type | Cable locator receiver |
|---|
| frequencies | Configurable 98 Hz to 131 kHz |
|---|
| passive modes | Power 50/60 Hz, harmonics, radio 10 to 22.7 kHz |
|---|
| depth range | Max depth displayed 30 m |
|---|
| depth accuracy | ±3 % of depth |
|---|
| display | 4.3 inch color LCD 480 × 272, auto backlight |
|---|
| battery | Li ion about 30 h continuous; 6 AA alkaline about 10 h |
|---|
| storage | 50 million records |
|---|
| connectivity | Bluetooth 4.2, WiFi 802.11b/g/n, mini USB |
|---|
| weight | 2 kg |
|---|
| dimensions | 321 × 219 × 676 mm |
|---|
| ip rating | IP65 |
|---|
| operating temp | −20 to 50 °C |
|---|
| warranty | 24 months |
|---|
| standards | CE, FCC Part 15, ISO 9001:2015 |
|---|
