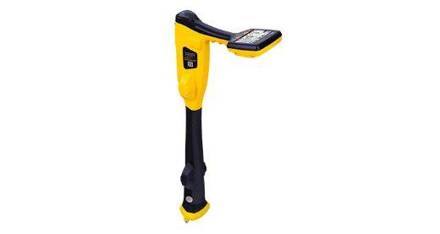

Vivax-Metrotech vLoc3-DM Pipeline Defect Mapper
Pemeta cacat pipa untuk tim korosi dan proteksi katodik: menemukan jalur pipa sekaligus membantu menilai cacat coating. Antena 3D ganda dengan mode vektor, GPS internal, dan Bluetooth menyusun peta cacat langsung di lapangan, semuanya di layar warna 4,3 inci.
| type | Cable locator receiver (pipeline defect mapper) |
|---|---|
| frequencies | 98 Hz to 200 kHz; ELF 3/4/6/8 Hz modes |
| passive modes | Power 50/60 Hz, harmonics, radio 10 to 22.7 kHz |
| depth range | Max depth displayed 30 m |
| depth accuracy | ±3 % of depth |
| gnss | Internal GNSS (GPS, GLONASS, Galileo, BeiDou), 1.5 m CEP |

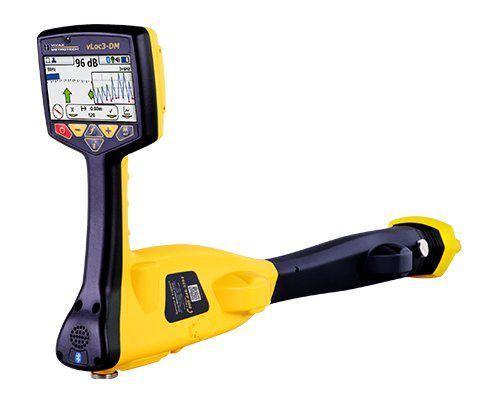

| display | 4.3 inch color LCD 480 × 272, auto backlight |
| battery | Li ion about 30 h continuous; 6 AA alkaline about 10 h |
| storage | 50 million records |
| connectivity | Bluetooth 4.2, WiFi 802.11b/g/n, mini USB |
| weight | 2.6 kg |
| dimensions | 321 × 124 × 783 mm |
| ip rating | IP65 |
| operating temp | −20 to 50 °C |
| warranty | 24 months |
| standards | CE, FCC Part 15, ISO 9001:2015 |
