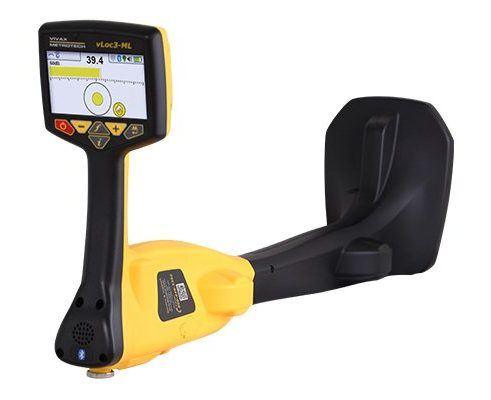

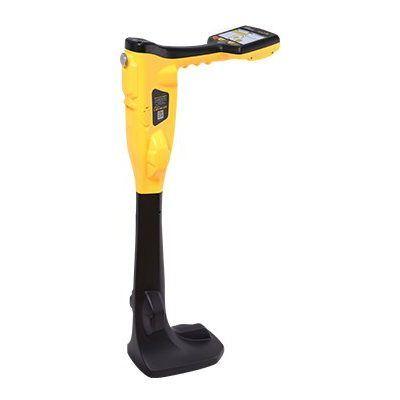

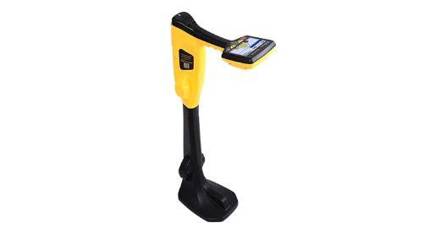

Vivax-Metrotech vLoc3-ML
Dua fungsi, satu alat: locator jalur utilitas sekaligus receiver marker elektronik (EMS) yang menemukan marker ball tertanam dan mengukur kedalamannya. Deteksi distorsi antena ganda dan pencatatan data platform vLoc3 tetap ada, log sampai 50 juta rekaman. Receiver 2,6 kg, layar sangat terang, kedap IP65 dan NEMA 4.
| type | Cable locator receiver and marker locator |
|---|---|
| frequencies | 98 Hz to 200 kHz; EMS markers 66.35 to 169.8 kHz |
| passive modes | Power 50/60 Hz, harmonics, radio 10 to 22.7 kHz |
| depth range | Max depth displayed 30 m; markers to 2 m |
| depth accuracy | ±3 % of depth; marker ±4 % to 1.2 m |
| display | 4.3 inch color LCD 480 × 272, auto backlight |
| battery | Li ion about 30 h continuous; 6 AA alkaline about 10 h |
| storage | 50 million records |
| connectivity | Bluetooth 4.2, WiFi 802.11b/g/n, mini USB |
| weight | 2.6 kg |
| dimensions | 310 × 159 × 721 mm |
| ip rating | IP65 |
| operating temp | −20 to 50 °C |
| warranty | 24 months |
| standards | CE, FCC Part 15, ISO 9001:2015 |
