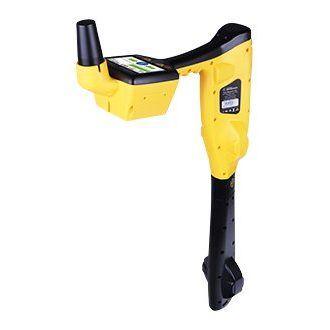

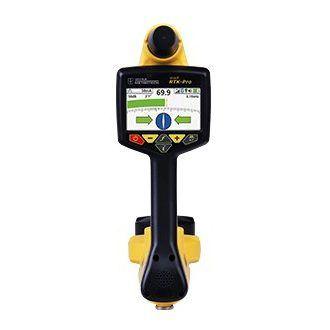

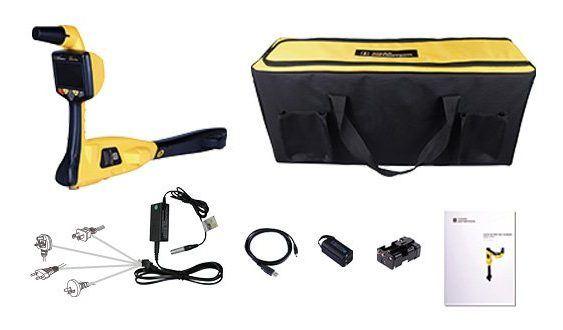

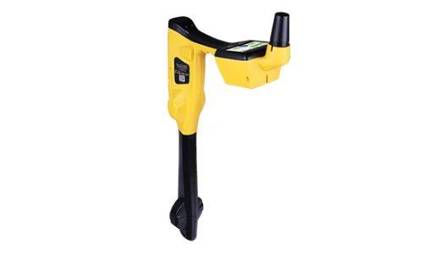

Vivax-Metrotech vLoc3-RTK-Pro
Versi vLoc3 yang ditambah GNSS RTK, jadi setiap titik utilitas yang ditemukan langsung memiliki koordinat berakurasi sentimeter. Koreksi real time diambil dari caster NTRIP lewat modul 4G LTE internal. Rentang frekuensinya 16 Hz sampai 200 kHz, dengan delapan mode pasif dan mode pencari gangguan.
| type | Cable locator receiver with RTK GNSS |
|---|---|
| frequencies | Configurable 16 Hz to 200 kHz |
| passive modes | Power 50 and 60 Hz, radio 10 kHz to 22.7 kHz |
| gnss | RTK GNSS 0.01 m + 1 ppm CEP; GPS, GLONASS, Galileo, BeiDou |
| bands | LTE FDD 2, 4, 5, 7, 17; UMTS 850/900/1700/1900/2100 MHz |
| display | 4.3 inch color LCD 480 × 272, auto backlight |
| battery | 16 hours continuous, Li ion |
| connectivity | 4G LTE (nano SIM), WiFi, Bluetooth, NTRIP, mini USB |
| weight | 2.4 kg |
| ip rating | IP65 |
| warranty | 24 months (extendable to 3 years) |
| standards | NTRIP casters with RTCM 3 |
