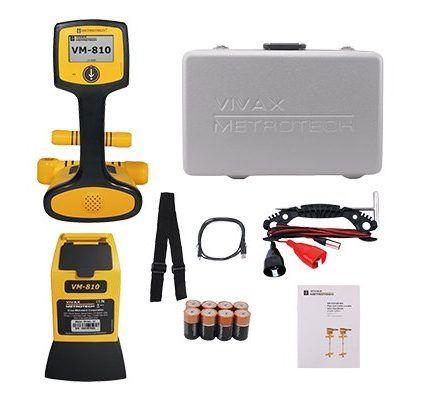

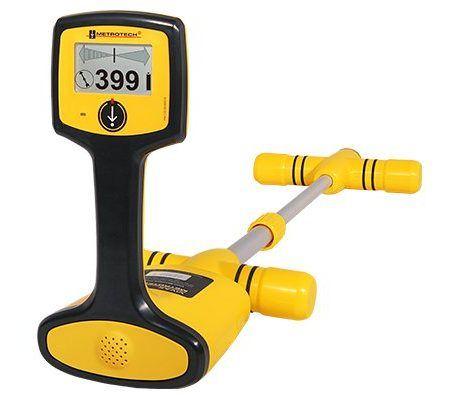

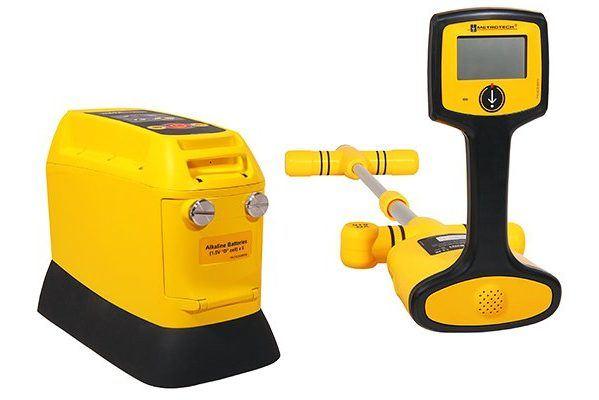

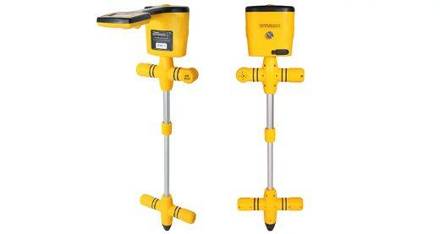

Vivax-Metrotech VM-810 Locator
Locator pipa dan kabel yang sederhana dan ramah di kantong, bekerja di satu frekuensi 83,1 kHz dengan mode induksi, sambungan langsung, dan clamp. Panah panduan kiri kanan dan indikator kompas membuat penelusuran mudah, plus mode sonde. Cocok kalau yang dibutuhkan hanya penelusuran dasar tanpa fitur tambahan.
| type | Cable locator receiver and transmitter |
|---|---|
| frequencies | 83.1 kHz (83,077.5 Hz), single frequency |
| depth range | Sondes: 2.4 m (D22), 5 m (D38), 8 m (D64) |
| depth accuracy | ±5 % or 2 in to 10 ft (3 m); ±10 % to 20 ft |
| tx power | 1 W high, 1/3 W low; 60 V RMS, 150 mA RMS |
| display | 2.7 inch black and white TFT LCD, 400 × 240 |
| battery | Rx 2 D cells about 65 h; Tx 6 D cells over 60 h |
| connectivity | 3.5 mm headphone jack, mini USB, 4 pin accessory jack |
| weight | Receiver 1.4 kg, transmitter 1.34 kg |
| dimensions | Rx 560 × 210 × 280 mm collapsed; Tx 239 × 117 × 182 mm |
| ip rating | IP54 |
| operating temp | −20 to 50 °C |
| warranty | 12 months |
| standards | CE, FCC Part 15, ISO 9001:2015 |
